Zlob Modular Push VCA Eurorack Performance Mute Module (Latching)

NOTE:
This product has 2 versions: Latching and Momentary.
THIS LISTING IS FOR LATCHING PUSH BUTTONS.

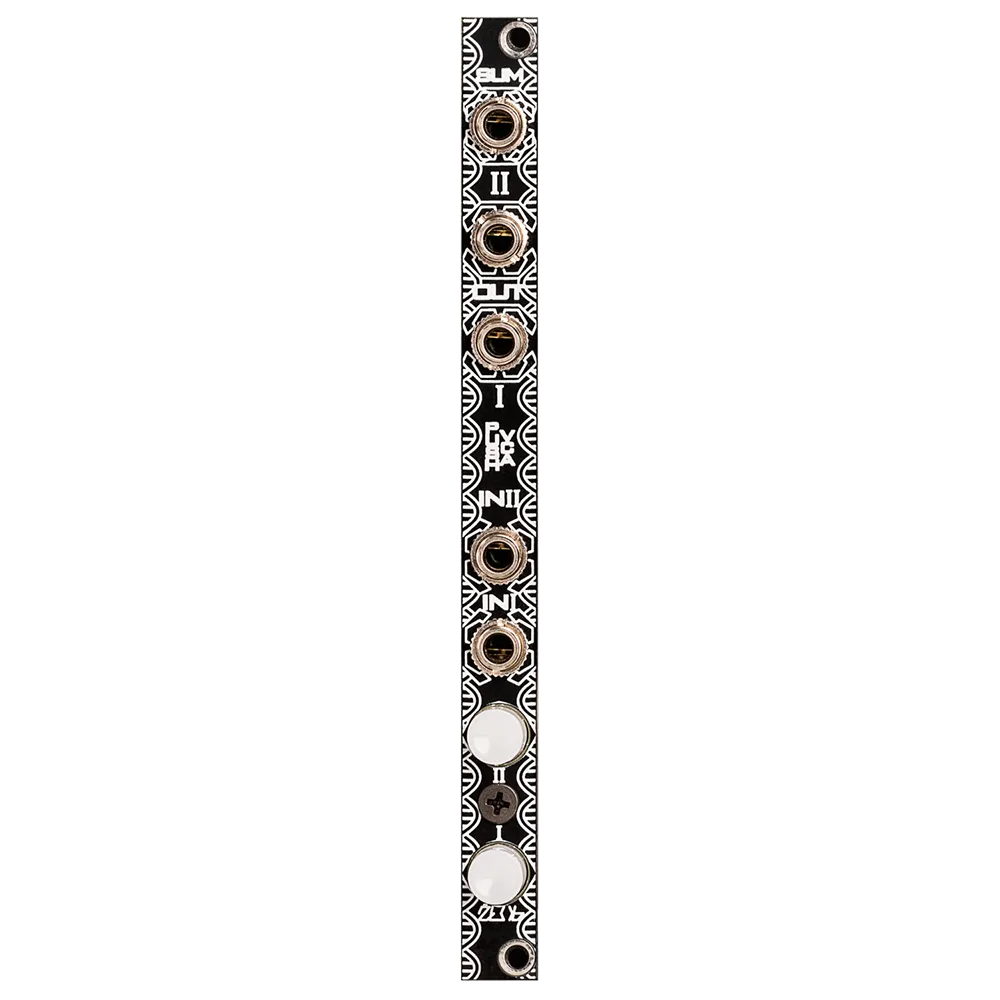

The Push VCA is a 2-channel DC coupled mute Eurorack module, featuring 2 independent unity gain DC coupled VCAs with LED push-button mutes. A mix of both channels is available at the sum, but all outputs are available simultaneously. The newest version has normalizations to +5v, so with nothing plugged into the in’s voltage can be toggled on and off at the outputs and up to 10 volts can be output at the sum.

The LED button colour may vary between red and yellow, but it will always be 2 of the same color.

For calibration, follow the instructions of the VnIcursal VCA.

Specifications

• Width: 2hp
• Depth: 60mm
• Power: +12V 40mA / -12V 20mA

Manufacturer product page here.
