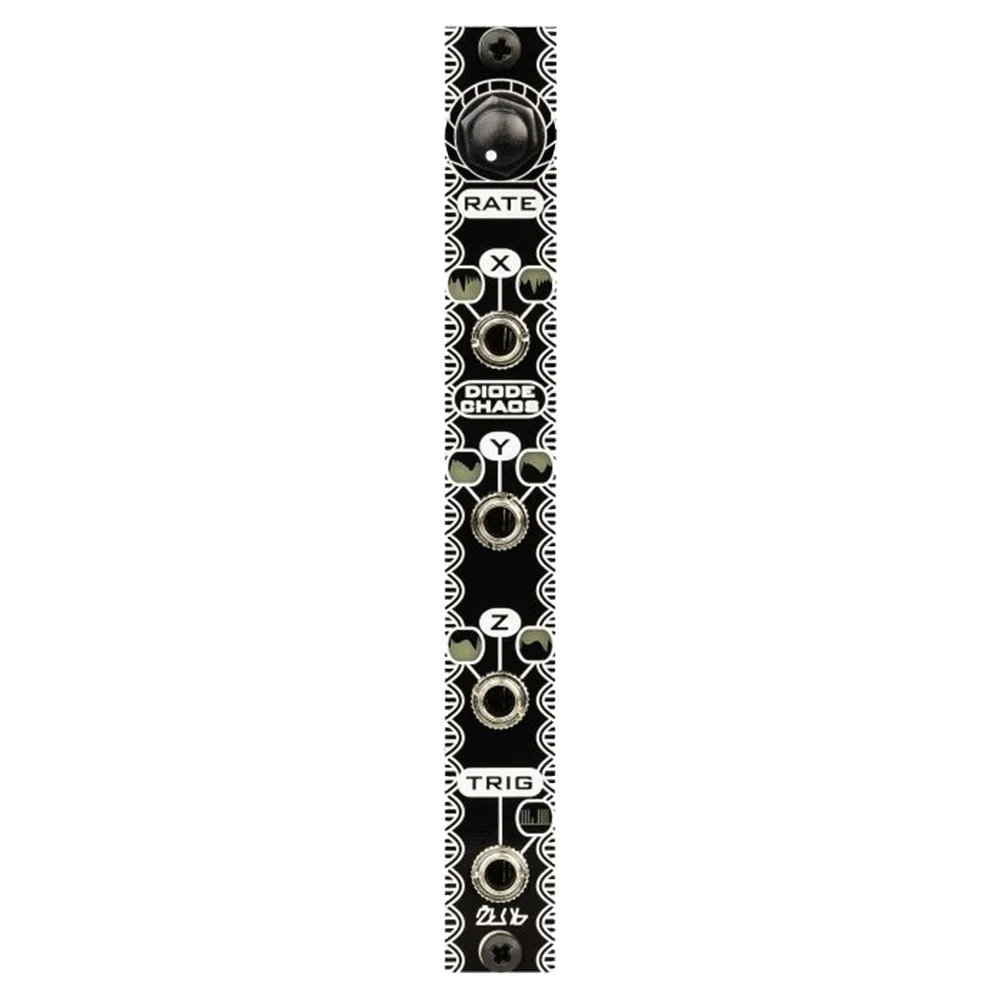

Diode Chaos is a 3hp analog chaotic low frequency voltage generator. It is a unique module because it has never existed as an electronic music instrument until now. The module is based on a circuit from a paper called “A simple chaotic circuit with a light-emitting diode” by Volos, Wang, Jafari, and Kapitaniak.
Diode Chaos produces 3 phases of interrelated morphing voltages including a chaotic trigger out. The range is around 30 seconds a cycle up to audio rate. The frequency is controlled by the RATE knob. Each output exhibits different behavior at different rate settings. X, Y, and Z outs like to stay in the 4Vpp range although at different RATE settings the outs can reach 10Vpp. The TRIG out chaotically releases 0-10v triggers although sometimes it will spit out smaller voltage peaks.
LED soldermask windows provide constant display of positive and negative voltage crossings.
Specifications
- Width: 3hp
- Depth: 45mm
- Power: +12V 10mA / -12V 10mA
