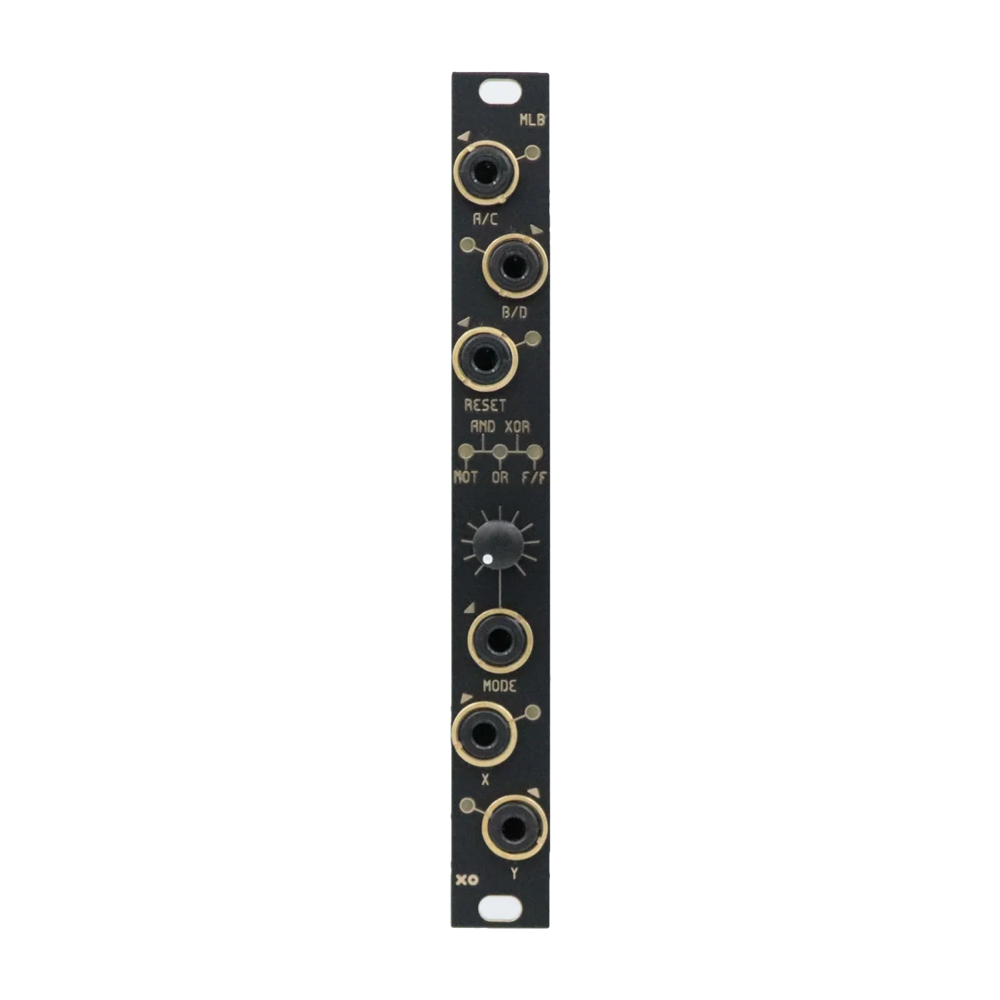

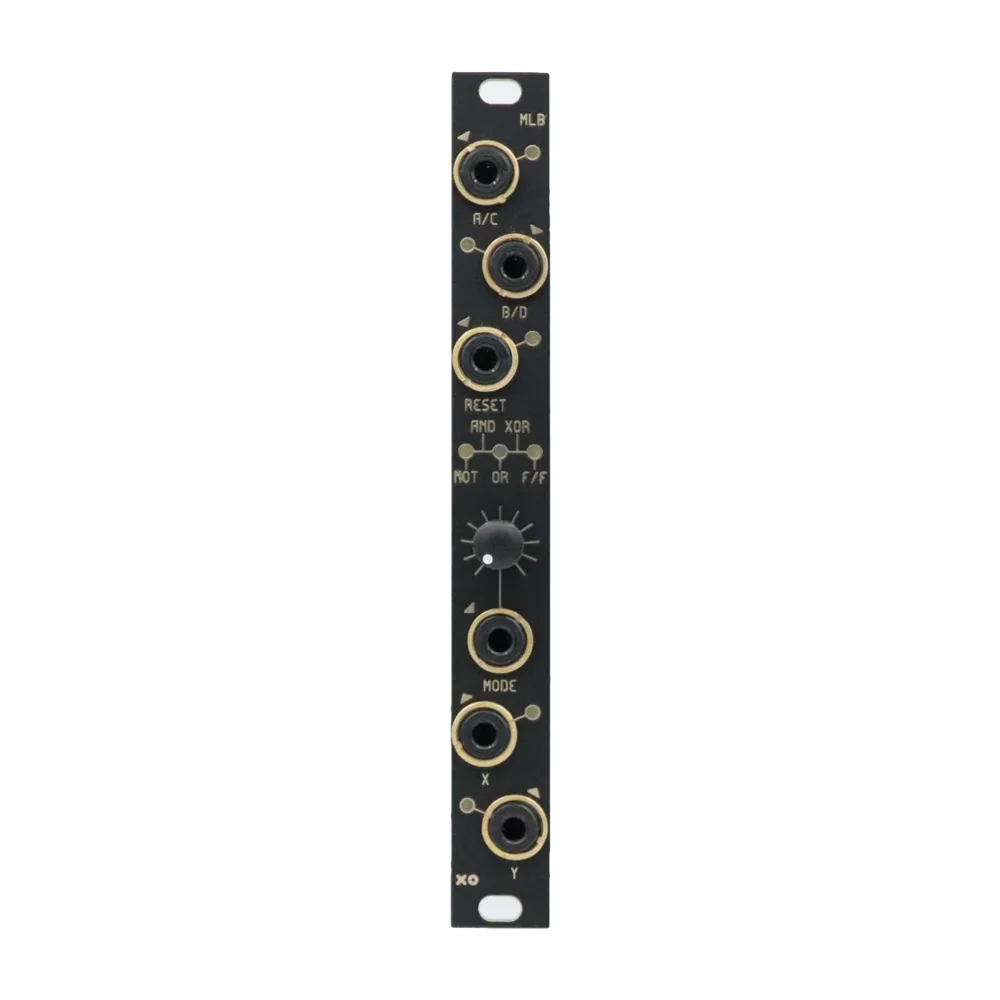

XODES MLB Eurorack Malleable Logic Block Module (3U)

MLB was created to reduce the footprint of our previous logic module, LB5, especially for the 1U version which is 24HP wide.

All of LB5 functions were kept, and MLB can work as a dual inverter, 2-inputs AND, OR, XOR gates with complementary outputs as well as a D-type flip-flop, which is the only mode to make use of the Reset input.

The mode in which MLB will work is set via a potentiometer, which will act as an attenuator when a jack is inserted to its associated CV input.

Specifications
Width: 3hp
Depth: 35mm
Power: +40mA, -0mA

Manufacturer product page here.
Product manual here.
