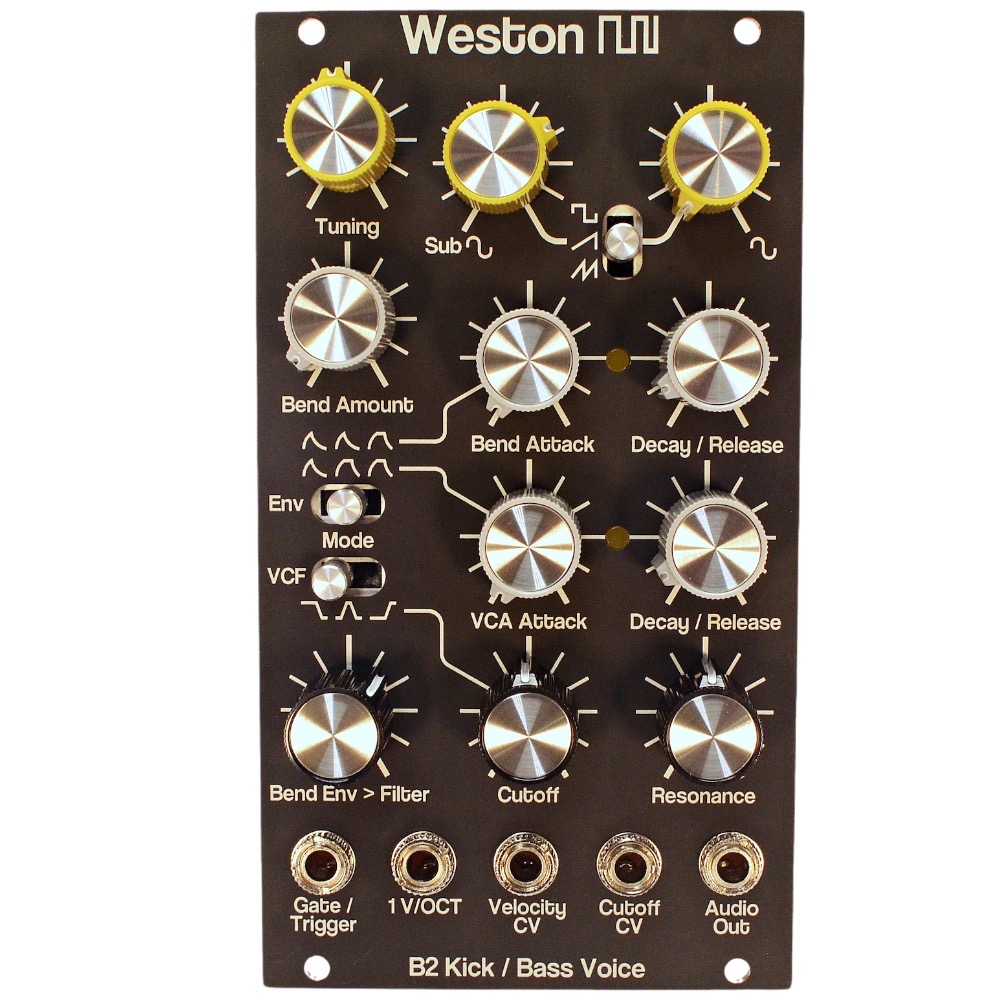

B2 is a complete Eurorack module that contains everything you need to create deep, thumping kick drums or cutting bass lines in one compact 14HP unit: A 1 V/Oct VCO with 4 waveforms, a 3-way waveform mixer with sub-octave sine wave, 2 fast, switchable AR/AD envelope generators, a high quality VCA, and a multi-mode VCF with resonance for additional tone shaping!
The AR/AD envelopes are super fast (~24uS minimum) and work with a special reset circuit to prevent artifacts and clicks. Additionally, the volume of the output and the VCF cutoff can be externally CV controlled.
Specifications
Width: 14HP
Depth: 24mm
Power: +110mA / -85mA
