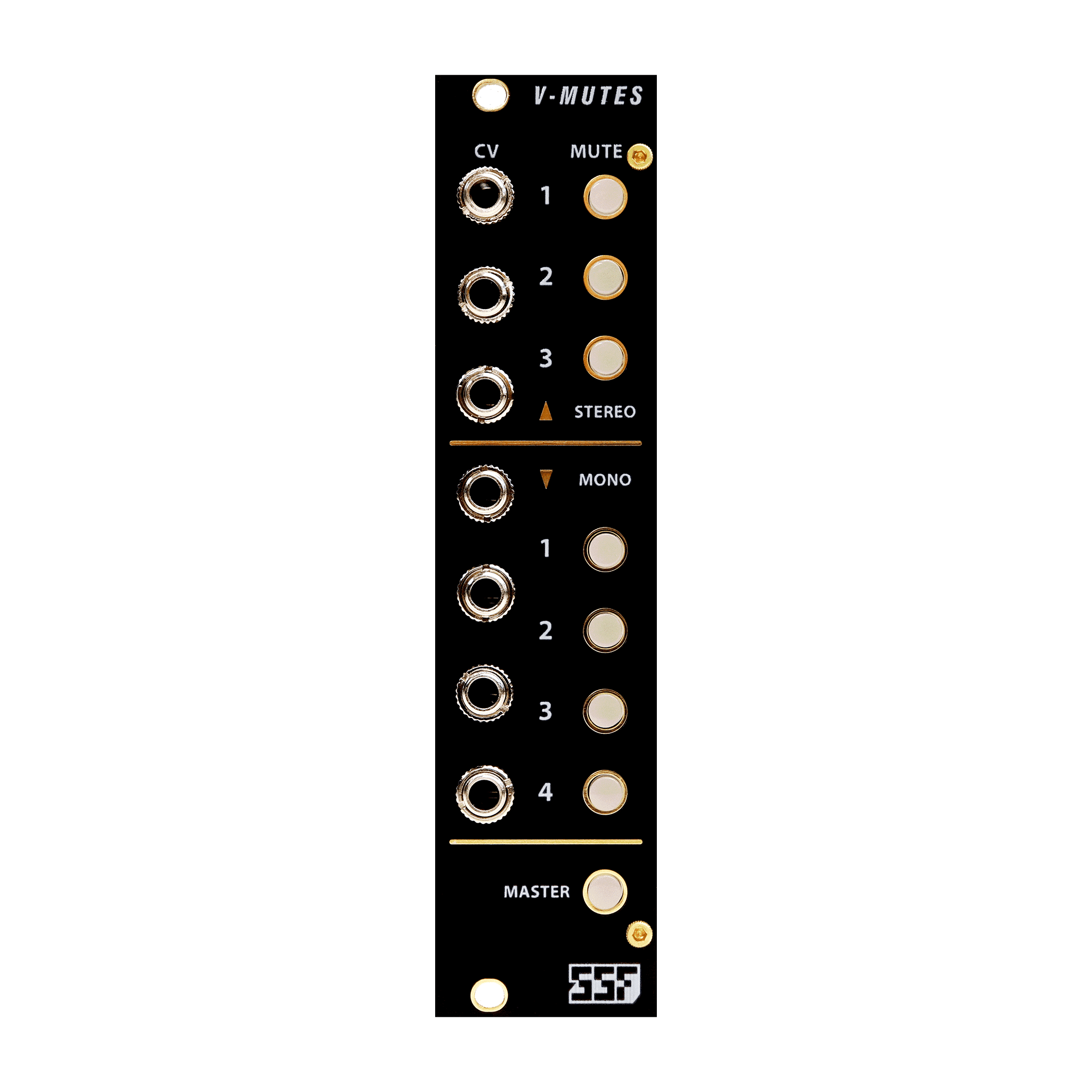

V-MUTES is an expander for the VORTICES character mixer. This module retains the full functionality of the V-CV expander that was included with your VORTICES, and adds click-less muting on all 7 of the VCA controlled inputs as well as a MASTER mute function that can mute all 7 channels simultaneously.
Channels are muted upon release of the mute buttons, allowing for more precisely timed muting and un-muting during a performance.
Muted channel status is indicated by a RED button LED on each channel.
The MASTER mute button will mute all channels at once while preserving individual channel mute status indication, allowing the user to preset active or muted channels before deactivating the MASTER mute.
Width: 6hp
