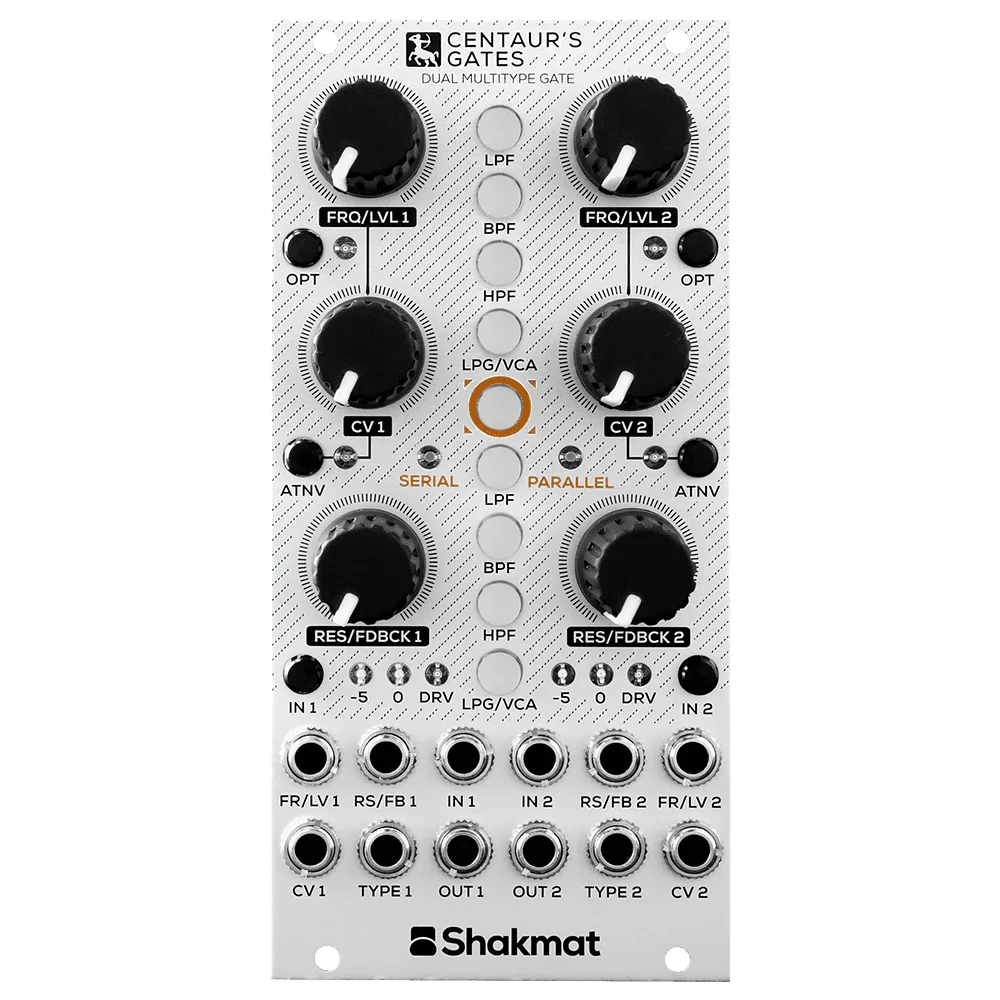

The Centaur’s Gates is a fully analog signal path dual multi-types gate. Each of its two channels can take many forms: a smooth and warm two poles filter, a ready-to-ping low-pass gate, a VCA with distorting feedback loop, or an aggressive filter reminiscent of the unfamous Korg MS20. Both versions of the filter are available in three modes (low-pass, band-pass and high-pass), bringing to eight the number of types a channel can take the form of.
The extended sonic palette the Centaur’s Gates delivers is not its only asset as the module includes handy features such as serial/parallel routing, vactrol analog emulation, control link, variable input gain with drive, Select Bus compatibility, and last but not least, clickless switching for channels type selection via CV.
Features
- Dual channel multi mode filter, low-pass gate or VCA
- Smooth & warm or agressive & overdriven VCF characters
- VCA with parallel distortion and feedback loop
- LPG with 1 pole or 2 poles response
- Serial and parallel routing configurations
- Opto feature simulating vactrol behavior
- Channel linking
- Clickless type switching
- Select bus compatibility with 16 presets
- DJTechTools rubber injected knobs
- Skiff friendly
Specifications
- Width: 12hp
- Power: +12V 190mA / -12V 150mA
