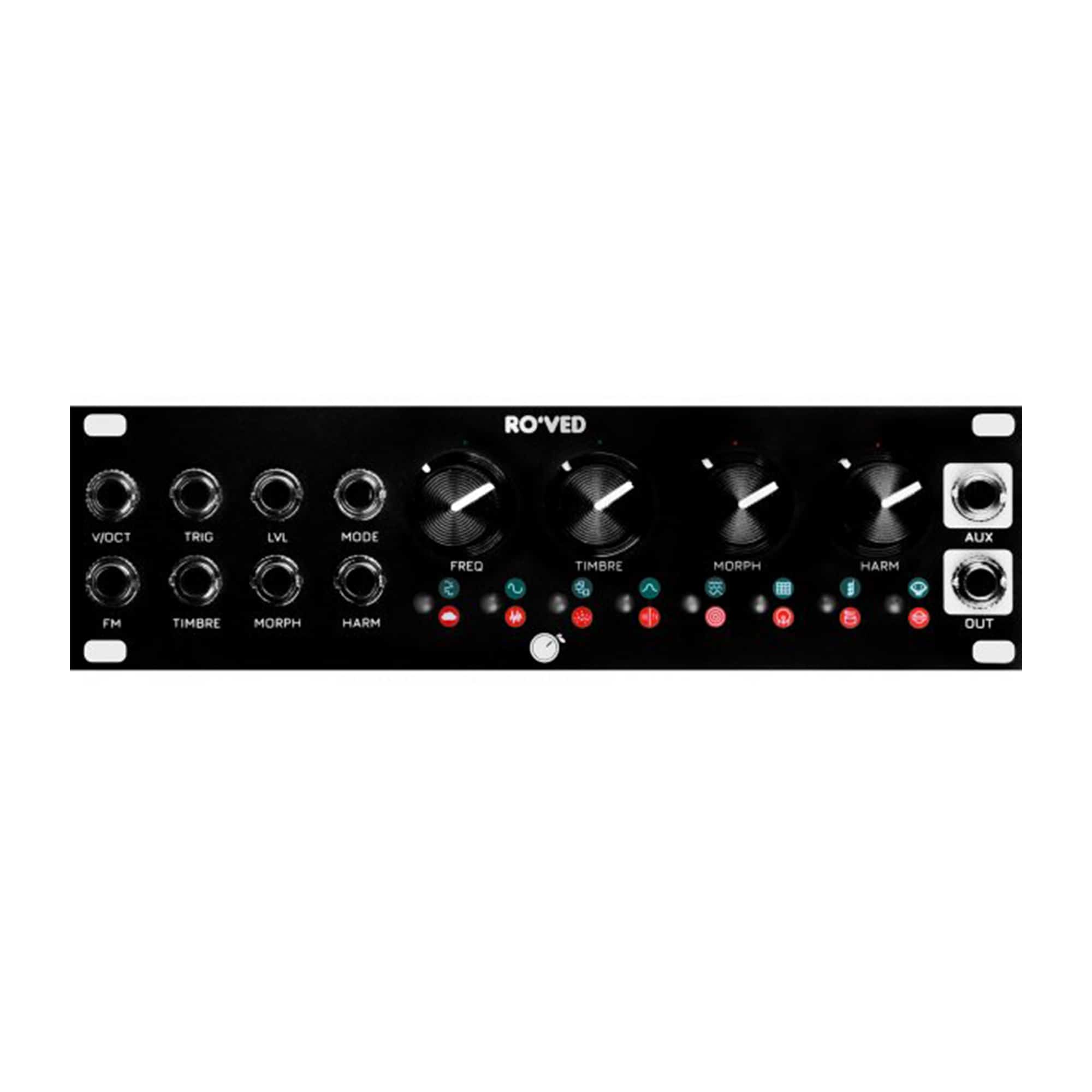

Plum Audio RO’VED Eurorack 1U Oscillator Module (Black)

RO’VED is Plum’s new 1U MACRO OSCILLATOR based on the legendary “Plaits” by Mutable Instruments.

Features

• 4 “CLICKKNOBS” that used as model selection buttons, main controls and attenuverters.
• 8 bicolor LEDs displaying the active model.
• Main frequency control, 8 octaves.
• Three dimensions of timbre control: harmonics, timbre, morph.
• Attenuverters for the timbre, morph, Harmonics and frequency modulation CV inputs.
• Timbre, morph and frequency modulation CV inputs are normalized to the internal EG.
• Model selection, harmonics, timbre, morph, FM CV inputs.
• Main V/O CV input, with a large input range (-3V to +7V).
• Trigger input, triggering an internal D envelope, or the exciter for the physical/drum models.
• Level CV input, controlling the internal digital low-pass gate, or acting as an accent control for the physical/drum models.

Specifications

• 28 HP
• 25mm Deep
• Intellijel 1u format
• Current Draw: 55 mA +12V, 8 mA -12V, 0 mA 5V
