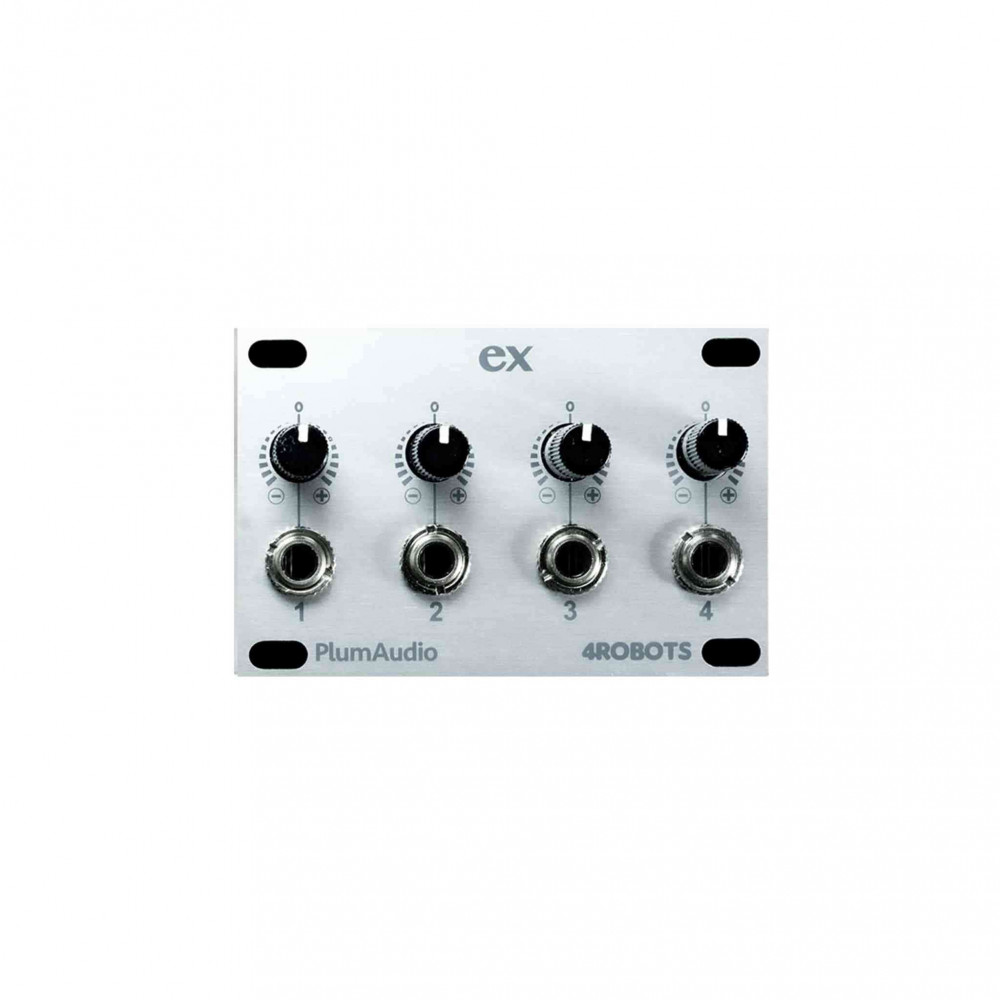

Expander to control Apex / 1uO_c v2.0 / 1uT_u parameters with CV.
4 CV inputs with Attenuverters.
Can be used with Apex / 1uO_c v2.0 / 1uT_u / Apex or Pique versions with expander header on the back:
- Apex 4ROBOTS
- 1uTu 4ROBOTS
- 1uO_c 4ROBOTS v2.0
Jumper on the back of ex12 allows normalization of the inputs to cv source (5v) to use with 1uO_c / 1uT_u as controller for soft parameters.
Tech Specs
- 12HP
- 22mm Deep
- Intellijel 1u format
- Current Draw: +12v – 15mA, -12v – 15mA, +5v – 0mA
