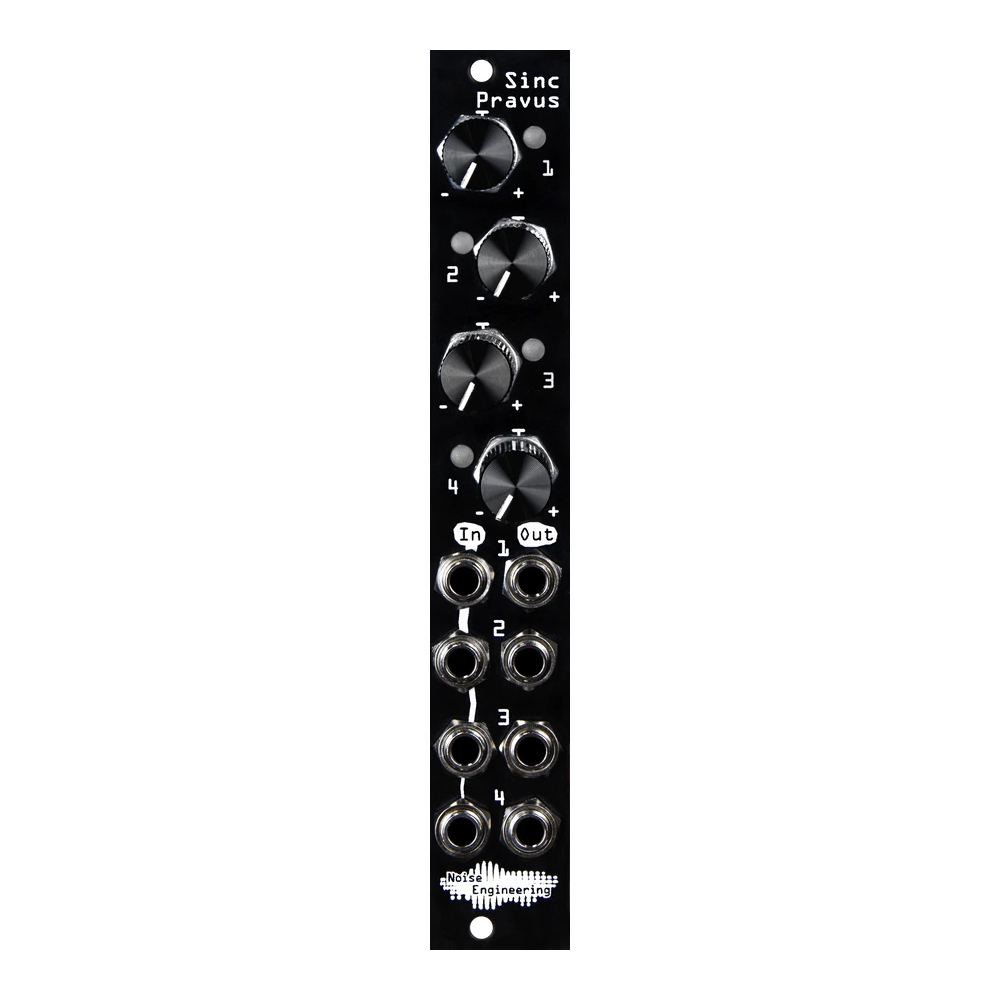

Sometimes you have the perfect CV signal, but it’s just not in the right range. Enter Sinc Pravus, a Goldilocks of a quad offset in 4HP. Whether you find your CV ranges are too high or too low, Sinc Pravus is just right.
Each of Sinc Pravus’s four channels are controlled by a dedicated potentiometer with an LED for monitoring signal outputs. The input jacks are normalled from top to bottom so it can offset the same signal by different amounts or simply act as a mult.
Use the back-panel switch to configure Sinc Pravus’s offset range to either ±5 or ±10 volts. With nothing patched to the inputs, the channels can be used as DC-voltage generators, especially useful for controlling multiple CV destinations with a single parameter. Sinc Pravus is a workhorse in 4 HP.
Specifications
- Width: 4hp
- Depth: 23mm
- Power: +50mA / -50mA
