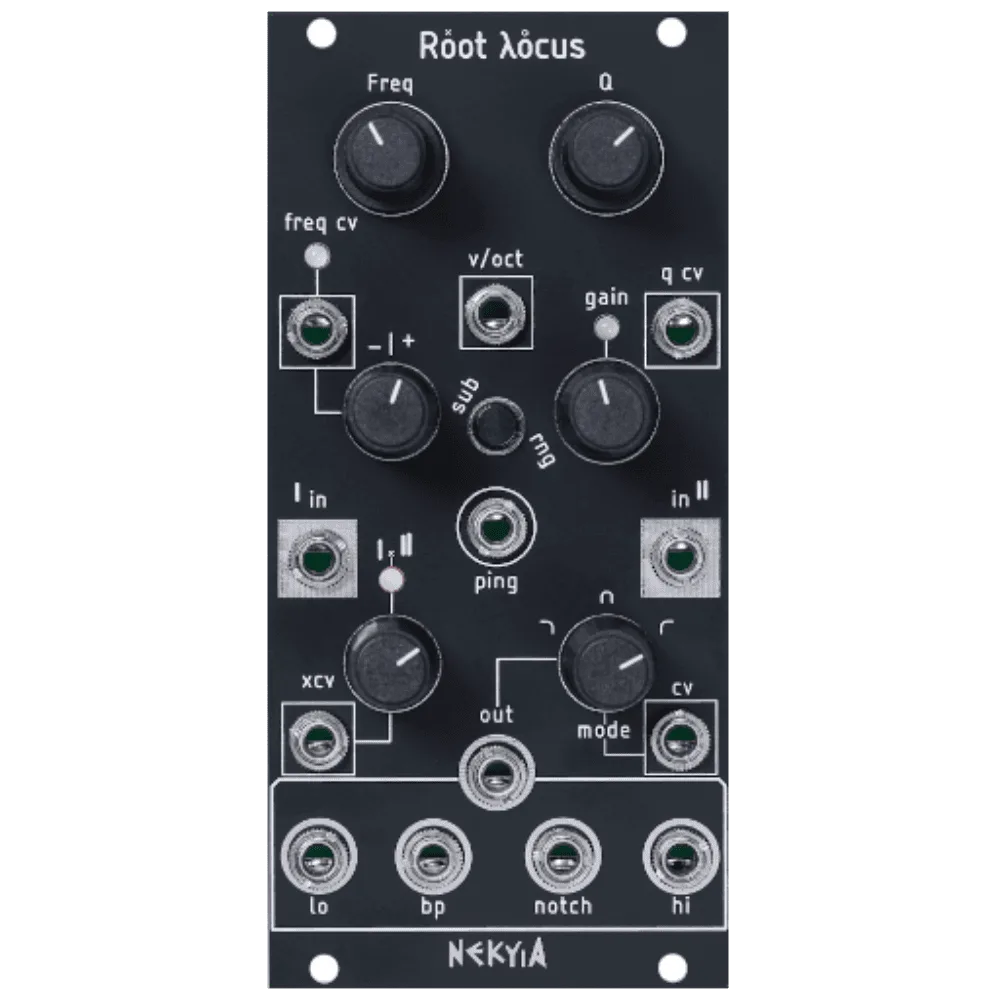

Root Locus is an analog 12dB/octave multimode filter, based on the CGS512 VCFQ filter.
It adds a dual input crossfading mixer with gain control and a variable mode output with cv control for sweeps between filter modes, aiming for an extensive tonal variety! It also features a Ping input that allows for an impressively wide variety of percussive sounds. The sub range switch makes it a very versatile CV filter too, able to filter control voltages as well as transforming it to an interesting quadrature LFO while in self oscillation.
Features
- Two input crossfading mixer with CV control
- Voltage controlled Mode out for smooth sweeps between filter modes
- Individual filter outputs for low pass, band pass, notch and high pass filters
- Frequency CV input with attenuverter and additional V/oct input
- Voltage Controlled Q
- Ping input for striking the filter
- Sub range switch for filtering control voltages and quadrature LFO operation
Specifications
- Width: 12hp
- Depth: 30mm
- Power: +12V 47mA / -12V 48mA
