Make Noise PrssPnt Eurorack Touchplate CV Generator Module

£89.00 inc. UK VAT

£74.17 ex. VAT

Available on back-order

(Bear in mind prices on the UK site are shown including UK VAT. After entering your shipping address at checkout prices will update to show the correct taxes due to us based on your location. If purchasing internationally, VAT, handling fees, and import duties will potentially be due on delivery)





Product Info

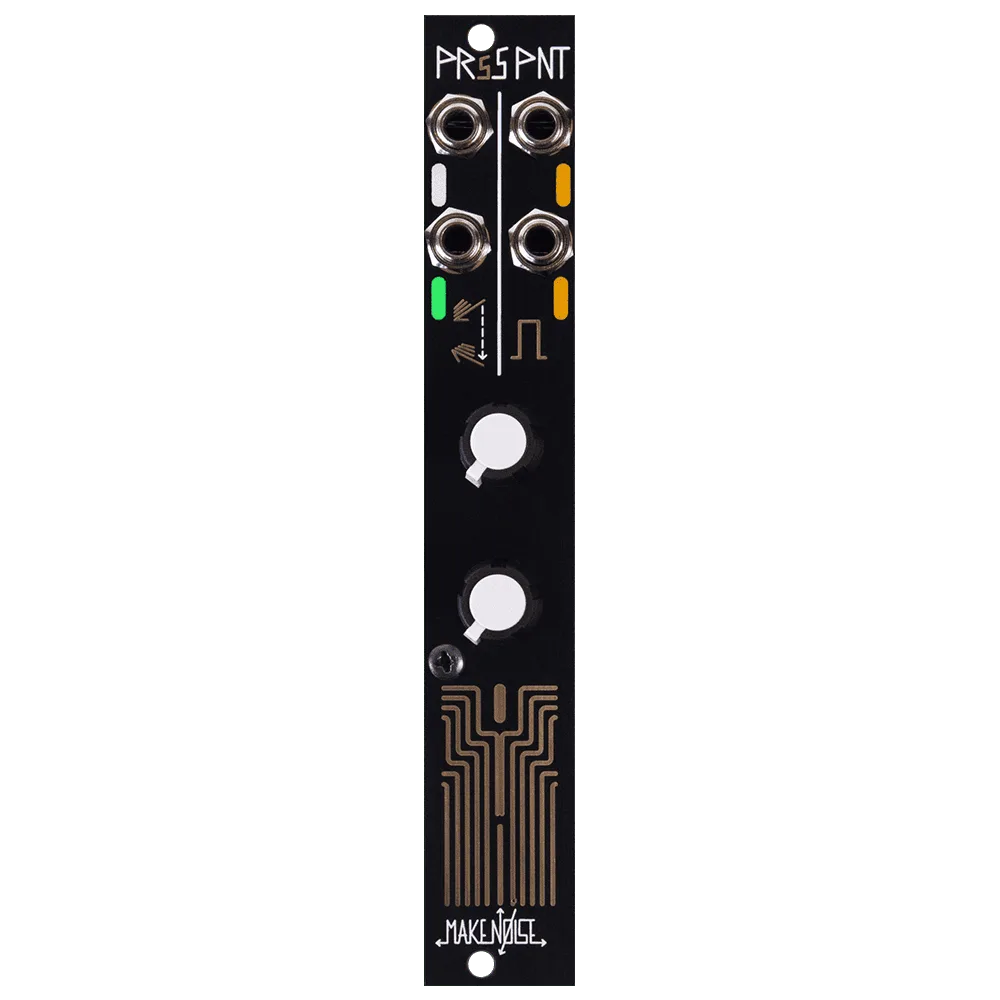

The PrssPnt music synthesizer module is a controller in which several signals are generated by touching the printed copper wire at the bottom of the instrument. Touching PrssPnt, you become part of the circuit, generating a total of four simultaneous signals (two CV, two Gate).

The basic function of PrssPnt will be familiar to anyone who has used Pressure Points or 0-CTRL. It could be seen as a single “souped-up” channel of one of these devices. Since it is a single channel, the tuned voltage outputs are not relevant, and instead are replaced with more playable sensitivity controls and alternate pressure and gate outputs.

Features

  • Momentary Gate output remains high as long as it is being pressed
  • Toggled Gate output goes high and low with each successive press of the plate: press it to make it go high, press it again to make it go low
  • Pressure output generates a positive control signal proportional to the amount of Pressure applied, further tailored by the Sensitivity Panel Control
  • Smooth Touch Function recreates the useful patch of sending a Pressure Output through a carefully tuned slew limiter for extended function generation
  • Turning up the Slew amount will allow for larger than life functions with very long decay to be generated by hand.
  • All four outputs available simultaneously

Specifications

Manufacturer product page here.
Product manual here.
