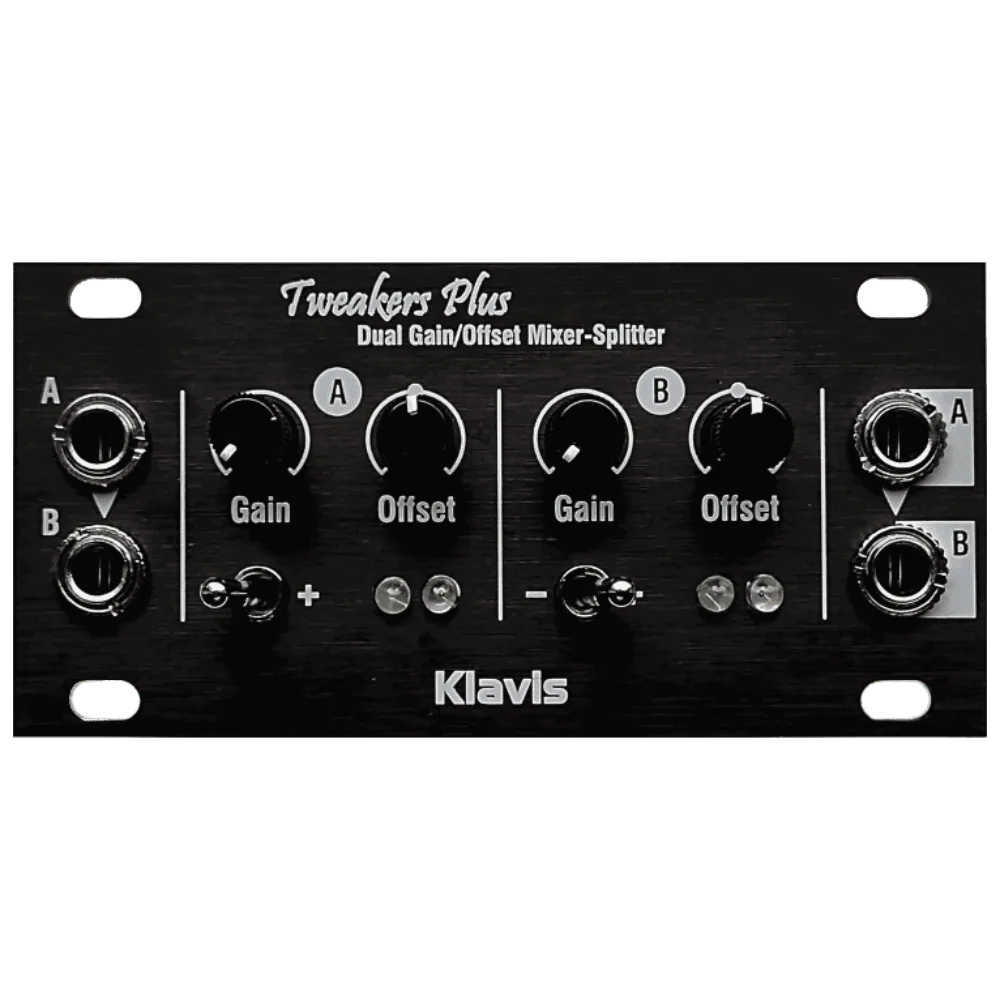

The Tweakers Plus is a 1U slim companion module that allows fine tuning your modulations.
Two channels offer control over gain and offset. A three-position switch allows muting the channel and inverting the modulation polarity without impacting the offset. A pair of LEDs tell the amplitude and polarity of the output signal; with audio signals, both LEDs light up together!
Normalizing of the inputs avoids using a multiple when a signal is dispatched to two targets. Normalizing of the outputs offers an extra mixer, summing the two channels, very handy as an audio mixer too.
The Tweakers Plus is a perfect companion for modules whose modulation inputs lack such amenities. Activating predefined settings at the flick of a switch is paramount for live situations. Being able to prepare two sets of carefully adjusted settings for a given signal is even more useful.
Features
- Two independent channels also useable jointly as a mixer or splitter
- Offset setting is independent of the polarity switch
- Normalized input A can distribute the signal in both channels
- Normalized outputs can mix the two channels on out B
- Useable for audio
Specifications
- Width: 16hp
- Depth: 33mm
- Power: +12V 23mA / -12V 25mA
