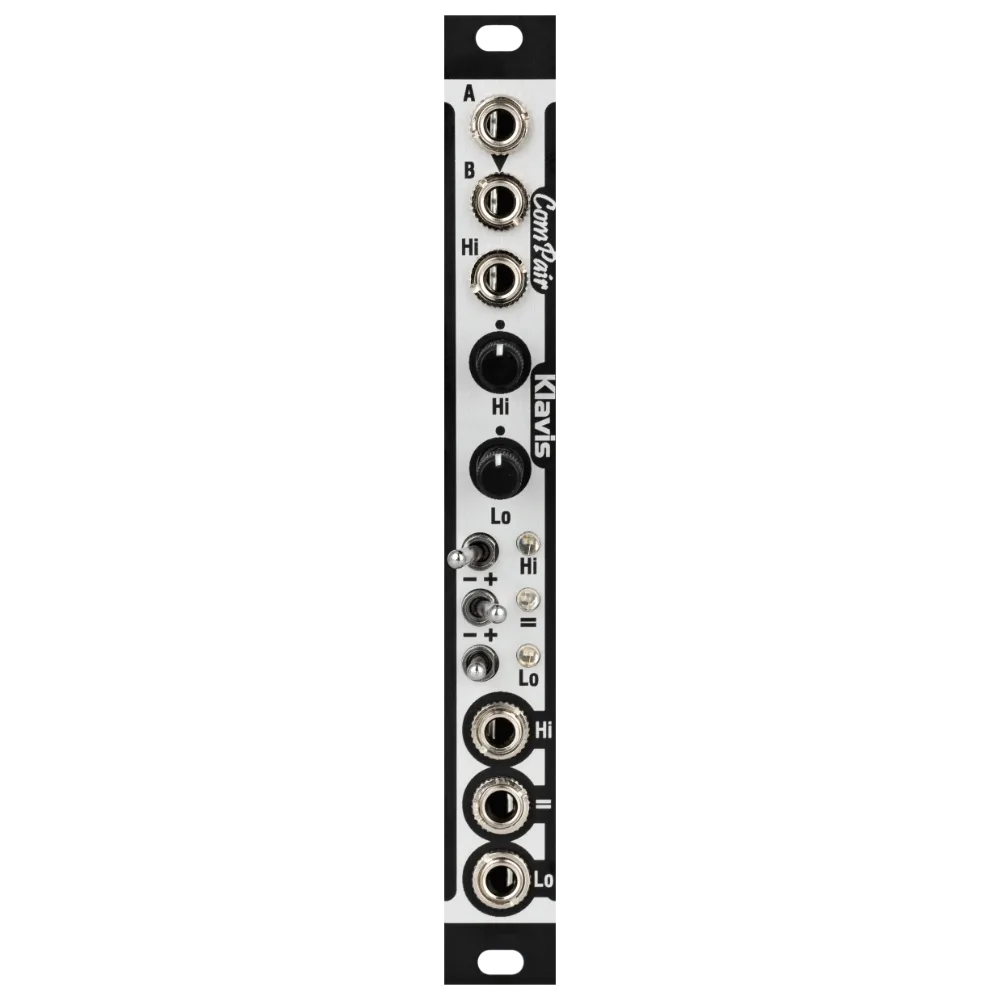

The ComPair is a versatile yet compact and affordable tool to expand your sonic arsenal. Voltage comparison is used to trigger events, reshape and mangle waveforms and realise level-dependent logic functions. Two sections can be used independently as voltage against manual setting comparison. Additionally, the first section allows voltage against voltage comparison with offset adjustment.
When used globally, the module offers a powerful window comparator whith CV-controlled top setting. The outputs benefit from three triple-position switches, allowing independently settable polarity and muting. Three LEDs indicate the output logic to keep track of what’s happening.
Features
- Two independent channels, A & B, also useable globally as a window comparator
- Normalized input A copies the signal into input B for window comparison
- Hi and Lo bipolar threshold adjustment knobs
- Hi input adds to the Hi setting knob
- Separate outputs for: above Hi setting, between Hi and Lo settings, below Lo setting
- 3-position switch on each output offers: Inverted Logic, Output Mute, Normal Logic
- Outputs can be ORed with a multiple
- Useable for audio or triggering
- Compact module
Specifications
- Width: 3hp
- Depth: 28mm
- Power: +12V 22mA / -12V 11mA
