Whether you are exploring the unique channel functions, CV modulation matrix or chaining options, it is quickly apparent that there are infinite possibilities to explore. This powerful and tactile modulation generator will quickly become the beating heart of your modular system.

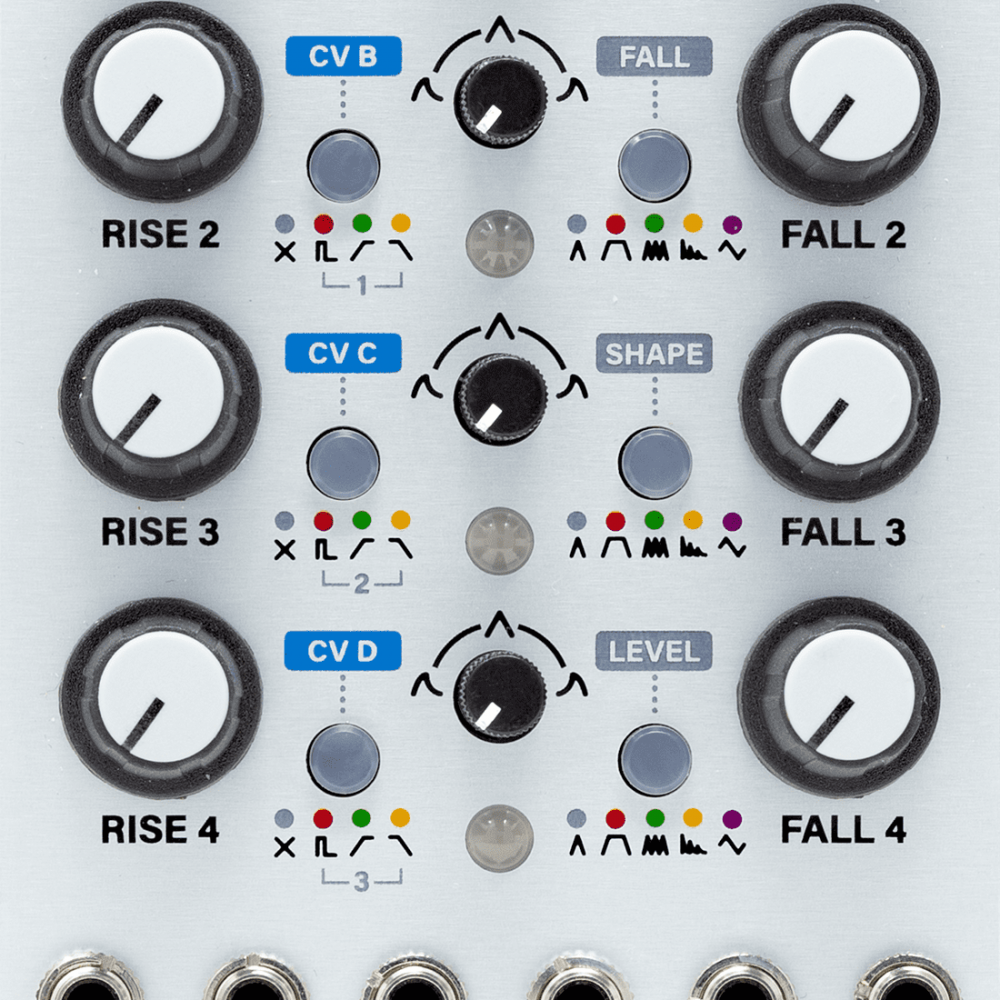

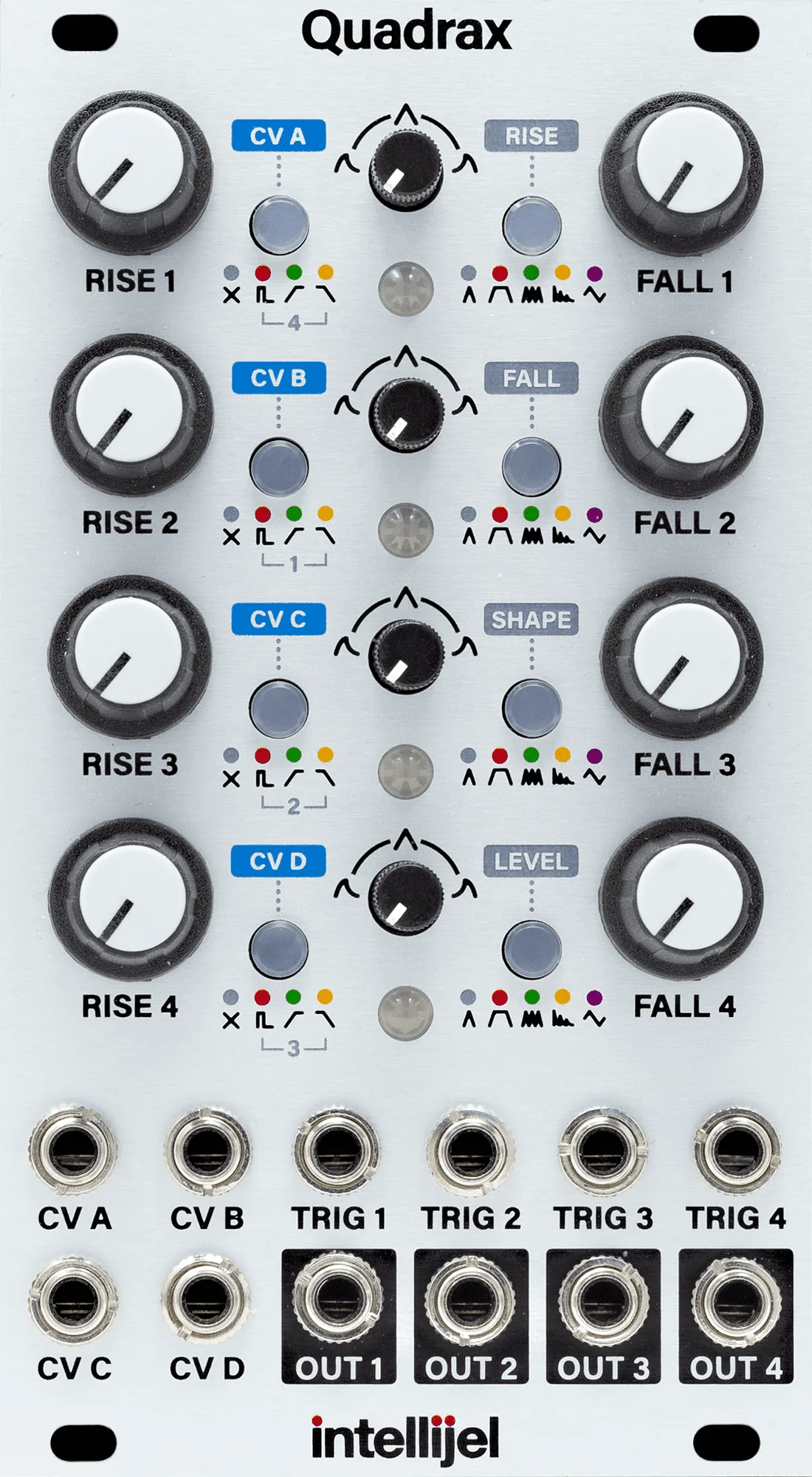

The Intellijel Quadrax consists of four independent, CV-controllable channels, each of which can be configured to perform any one of the following functions:
- an AD (Attack, Decay) envelope
- an AHR (Attack, Hold, Release) envelope
- a cycling envelope (resulting in a unipolar LFO)
- a pulse burst generator (Finite repeated functions that ascend or descend in amplitude)
- a morphing, bipolar beat syncable LFO
- The envelopes all feature a continuously variable response curve, ranging from logarithmic through linear to exponential, and each stage can be as snappy as 0.3 ms to as lengthy as 20 seconds.
When set to Burst mode, the channel generates a rising or falling burst of pulses, with full control over the length of the pulse burst, the number and shape of the bursts within it, and whether the bursts increase or decrease in amplitude over the burst.
Channels can be chained together to create complex multi-stage envelopes, with each channel triggered by the previous channel’s trigger input, end-of-rise, or end-of-fall. This enables multiple function generators to fire simultaneously, or it enables the creation of complex multi-stage envelopes by allowing the linked function to fire either at the end of the previous function’s rise time, or at the end of its fall time.
Specifications
Width: 14hp
Depth: 38mm
Power: 106mA @ +12V / 9mA @ -12V
