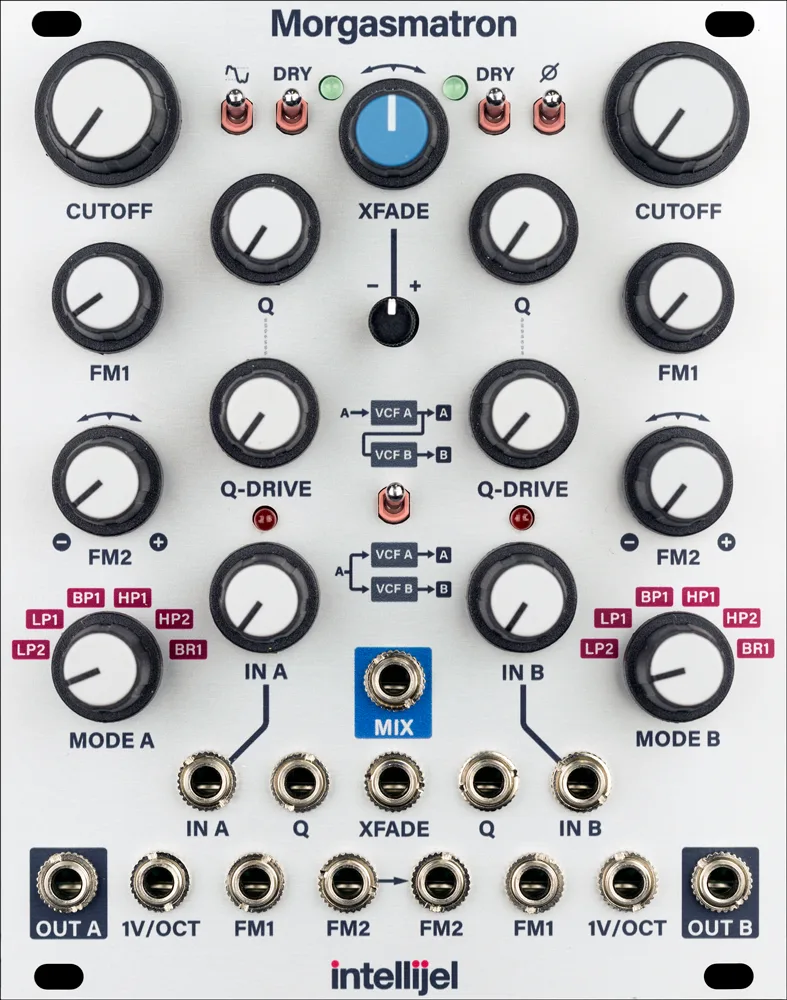

Intellijel Morgasmatron Eurorack Dual Multimode Filter Module

This is the third generation of Intellijel’s much loved Korgasmatron filter designed in collaboration with David G. Dixon. For obvious reasons, we considered naming it the Korgasmatron III. But once we experienced the purity and range of its finely re-tuned filters; the warmth of its soft-clipping; the beefiness of its Q-DRIVE; the aggressive howl of its all new overdrive circuit; the additional XFADE options; and its clangorous new ring modulation capabilities, we knew it was something much more than a Korgasmatron III. It was a MORgasmatron!

Features

• Analog self-oscillating, crossfading, six-mode dual filter.
• Three FM inputs for each filter: One with 1V/OCT pitch tracking, one with a unipolar attenuator, and one with a bipolar attenuverter.
• Serial or Parallel signal flow.
• Overdrive distortion modelled after the Proco Rat guitar pedal.

Specifications
Width: 20 hp
Depth: 38 mm
Power: 113 mA @ 12V 102 mA @ -12 V

Manufacturer product page here
Product manual here
