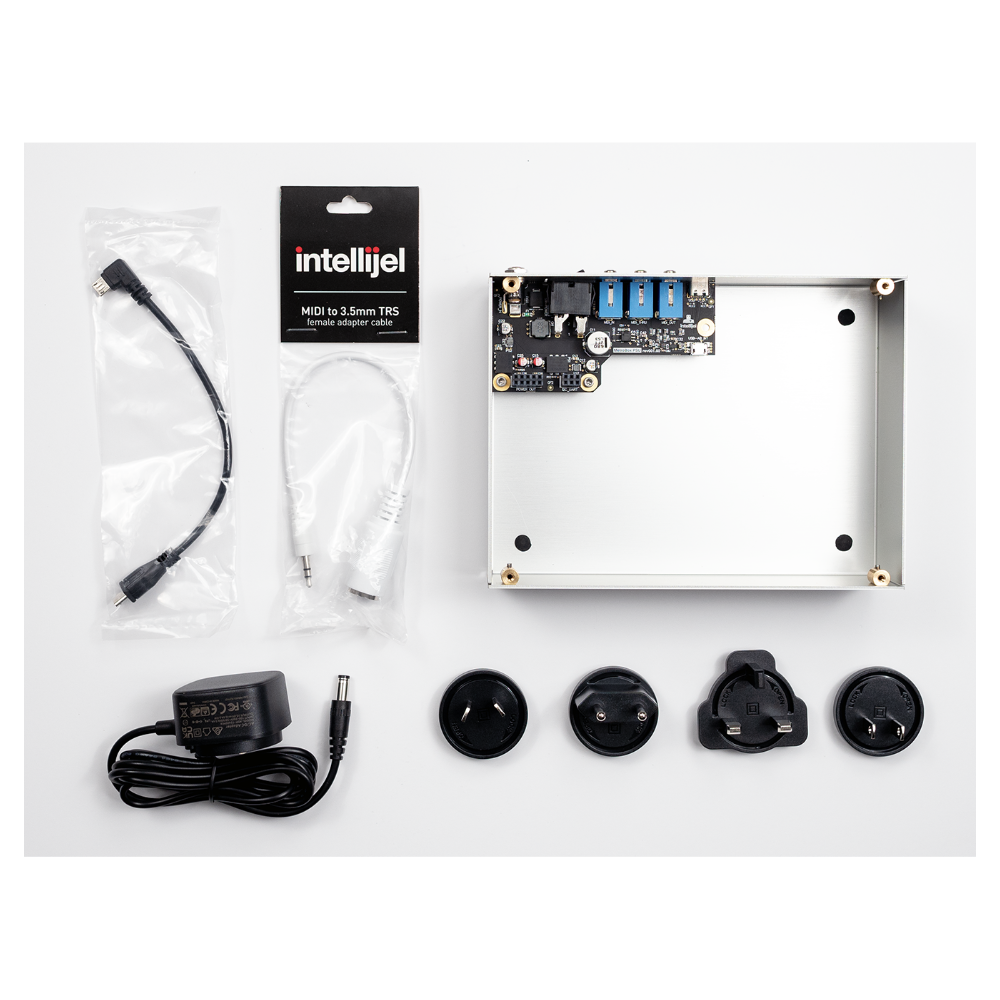

The Metropolix Solo Kit is available for current eurorack Metropolix owners that want to set Metropolix free to sit next to their modular systems.
Metroplix Sequencer not included.
The Metropolix Solo is a unique and powerful desktop multitrack MIDI and CV musical sequencer. With an abundance of hands-on, tactile controls and a wealth of internal and external modulation possibilities, you can quickly and easily create infectious sequences.
Even the simplest melody can be brought to life with seemingly endless options to create variations or real-time manipulations. In the studio or in a live performance, the Metropolix is sure to become a staple source of fresh ideas and killer riffs in your creative process.
CV and MIDI Sequencing on your desktop
We’ve set Metropolix free from the rack, in a small desktop case, allowing you to interface with your DAW or other hardware music machines without needing a full eurorack system.
Going Solo, but not alone
The Metropolix Solo Kit is available for current eurorack Metropolix owners that want to set Metropolix free to sit next to their modular systems.
Connections
Metropolix Solo has all the connections you need for USB MIDI, Serial MIDI (TRS or DIN with Adaptors) and CV/GATE for modular systems. Use CV/Gate, TRS and USB MIDI all at the same time.
Top Panel (CV/Gate)
- A/B Assignable CV Outputs
- X/Y/Z CV Modulation Inputs
- CLK Sync and Reset Input
- CLK Sync Output
- Track 1 and 2 Pitch and Gate

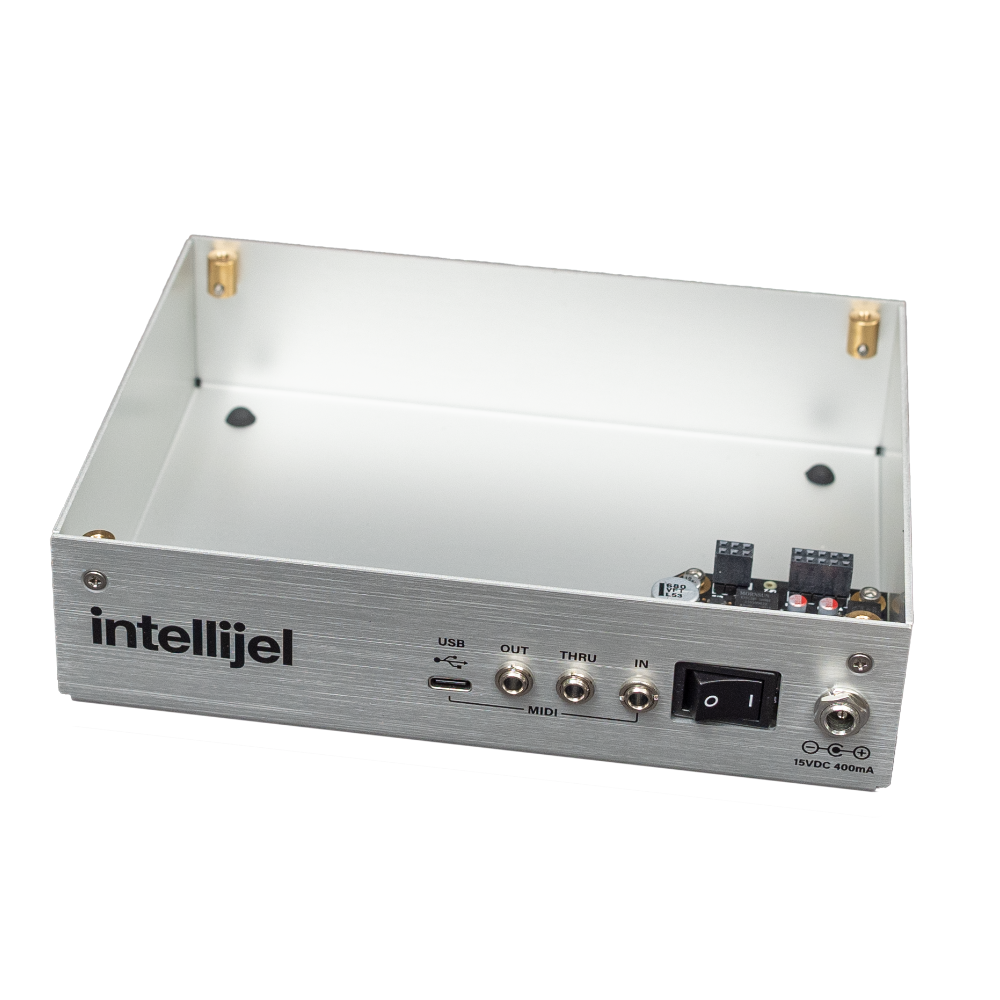

Rear Panel (MIDI/Power)
- MIDI TRS: In / Out / Thru
- MIDI USB-C
- 2.1mm DC for Power Supply
Let’s talk about Metropolix
Performance Controls
Metropolix is an interactive sequencer optimized for live performance, jamming, and improvisation — with configurable, hands-on control of all the most essential performance parameters. Sequences transform and mutate with just the twist of a knob; a flick of a switch; a nudge of a slider; or an injection of CV. With Metropolix, your music is as dynamic and evolving as your imagination.
Two Tracks, Interconnected
Two tracks (TRK 1 and TRK 2) are variants of a main pitch/gate sequencer, which is programmed via the PITCH sliders, PULSE COUNT and GATE TYPE switches. Each track interprets the main sequence in a variety of ways — creating complementary variations that enable you to generate counterpoint, polyrhythms, and all manner of sonic movement (both subtle and extreme).
Each of these tracks has its own playback ORDER, sequence LENgth, clock DIVision, SWING amount, SLIDE time, and track GATE lengths. Other track-based sequence variables are accessible from the TRACK MENU, and include Pitch Slider inversion; sequence note range; track transposition; and more. In addition, both tracks have multiple lanes of per-stage playback parameters, including: GATE override; PITCH override; RATCHet count; PROBability of playback; ACCUMulating transposition, and a dedicated CV/CC lane. Each stage also has a SKIP feature, and a pitch SLIDE option.
The Accumulator
Automate pitch movements on a per-track or per-stage basis. Use various trigger types and increments to control variation on your tracks.
Eight Modulation Lanes
Eight Separate modulation lanes are accessed via the MOD button. Each MOD lane has 8-stages of modulation values and its own playback ORDER, LENgth, and clock DIVision; and each lane is routable to one of Metropolix’ two assignable outputs, MIDI CC, and dozens of internal destinations, allowing for sophisticated and powerful self-modulation.
Three AUX Inputs and Two CTRL Knobs
A trio of AUX inputs allows for external modulation of user-assignable sequencer parameters for even greater variation, while two assignable CTRL knobs give you direct access to the parameters you want to adjust most frequently during a performance. With dedicated Pitch/Gate outputs for both Track 1 and Track 2; two totally user-assignable outputs (A and B); and internal MOD routing, Metropolix features a wealth of patching opportunities.
100 User Defined Scales
Design and modulate between your own custom scales and root note.
Modulate BPM
Use the CTRL Knobs, AUX Inputs, or Mod Lanes to modulate the BPM of your track and the clock outputs of the Metropolix.
Loopy — Performance Looping
Metropolix also features a Loopy mode, allowing you to instantly play back short sub-sequences, or even “play” the stage buttons directly (like a ‘keyboard’).
64 Total Recall Presets & Preset Chaining
Metropolix stores up to 64 preset configurations (in 8 banks of 8 presets), and all live settings are stored on the module, ensuring that your Metropolix will always power up exactly as you left it — even if you haven’t saved them to a preset. By default presets can change all the structural (menu-based) elements of your sequencer without overwriting the front panel controls, but full recall is also available.
Chain Presets to go hands free while you twiddle other knobs on your synth.
Specifications
- Width Module Only: 34HP
- Height: 66mm (from rubber foot to top of knobs)
- Width: 175mm
- Depth: 140mm (front to rear jacks)
- Power: 15V DC/0.4 A (minimum), center-pin-positive
