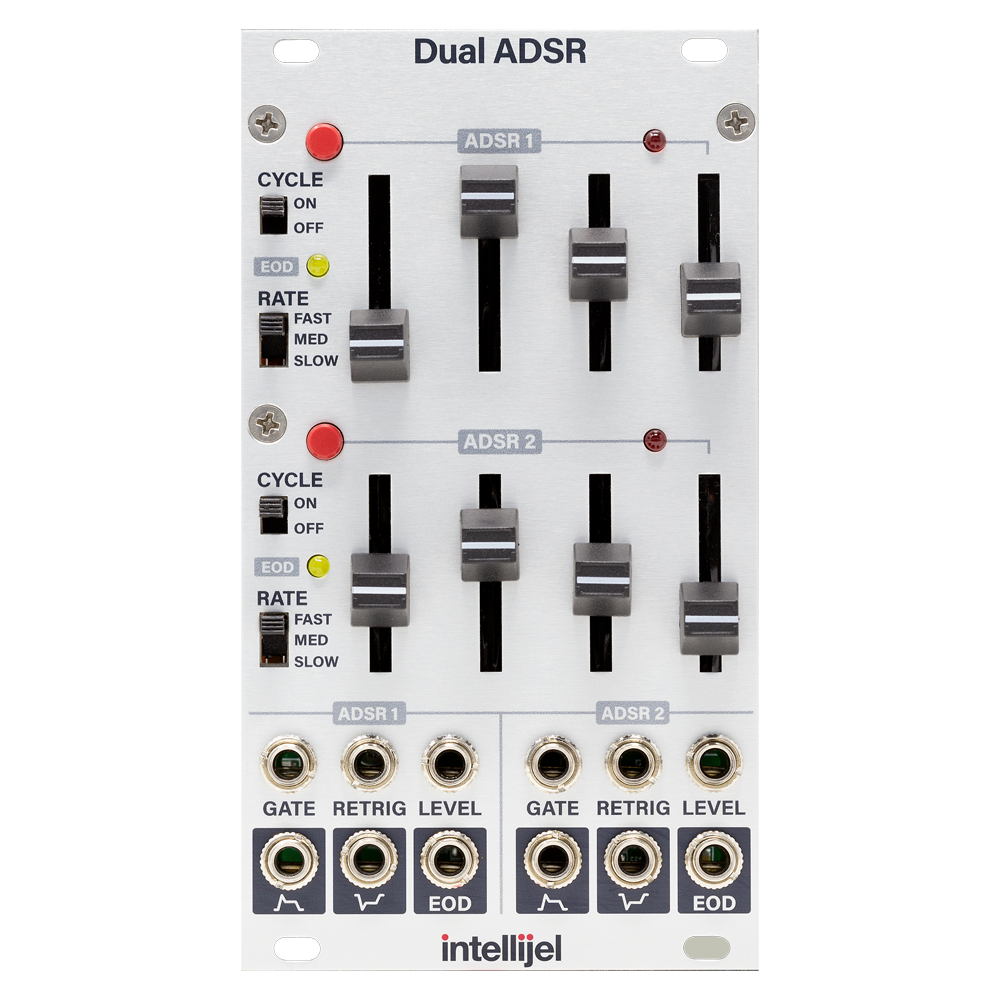

We tend to prefer sliders for our envelope generators because they provide a clear visual representation of the modulation shape. This circuit is based in part on the Roland SH-101 / System 100m design with several enhancements.
Features
- Manual GATE buttons
- Three timing ranges: (1 second, 10second, 1minute A/D times)
- Normal and inverted outputs
- End of Decay (EOD) logic output
- Cycle mode (which GATE logic control)
- Retrig input (allows re-triggering of the envelope if source gate held high)
- Dynamic control of the envelope output level (each ADSR is routed through a linear VCA and the control is normalled to +5V via the LEVEL jack. You can patch another control source like an LFO or VELOCITY level from a keyboard to this jack.
Specifications
Width: 14hp
Depth: 38mm
Power: 60mA @ 12V, 49mA @ -12V
