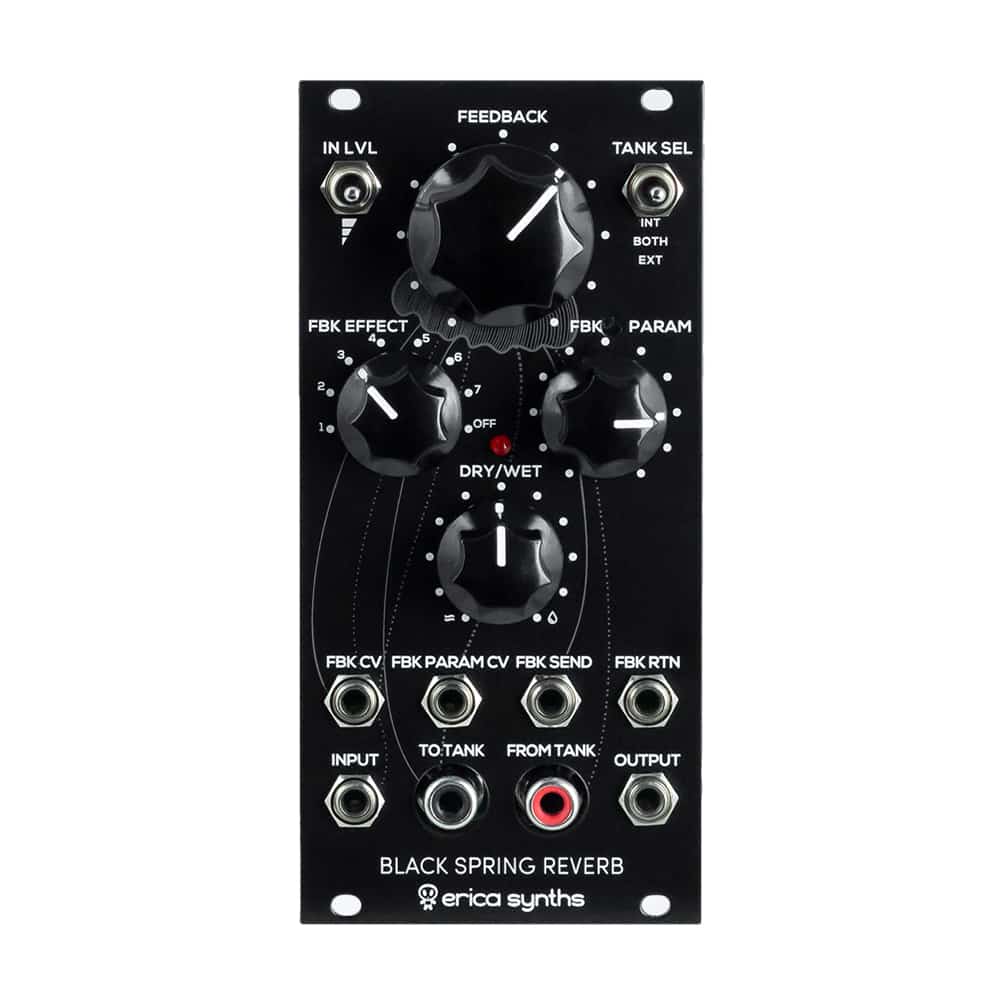

Erica Synths Black Spring Reverb Eurorack Module

Erica Synths Black Spring Reverb is a different take on spring reverberation units. Firstly, it has built in vactrol based audio compressor, secondly, it can operate an external tank and combination of both internal and external ones for effects unheard before, thirdly, in order to animate reverb effect, the module has built-in feedback effects – pitch shifters, delay, ring-modulator, etc; feedback amount and effect parameters can be controlled manually and via CV, making the module an experimental instrument on its own. Module comes with compact spring reverberation tank which can be easily installed in most eurorack cases.

Features

• Compact spring reverberation tank to install in a skiff case
• Manually and CV controlled feedback amount
• Vactrol-based compressor
• 7 distinct feedback effects
• Selection between internal, external reverberation tanks or combination of both
• Feedback Send and Return jack sockets

Specifications
Width: 12hp
Depth: 30mm
Power: +43mA, -71mA

Manufacturer product page here.
Product manual here.
