Kinematic is a Greek based word, which describes motion – of points, bodies or systems of bodies, without the consideration of the forces that cause them to move.

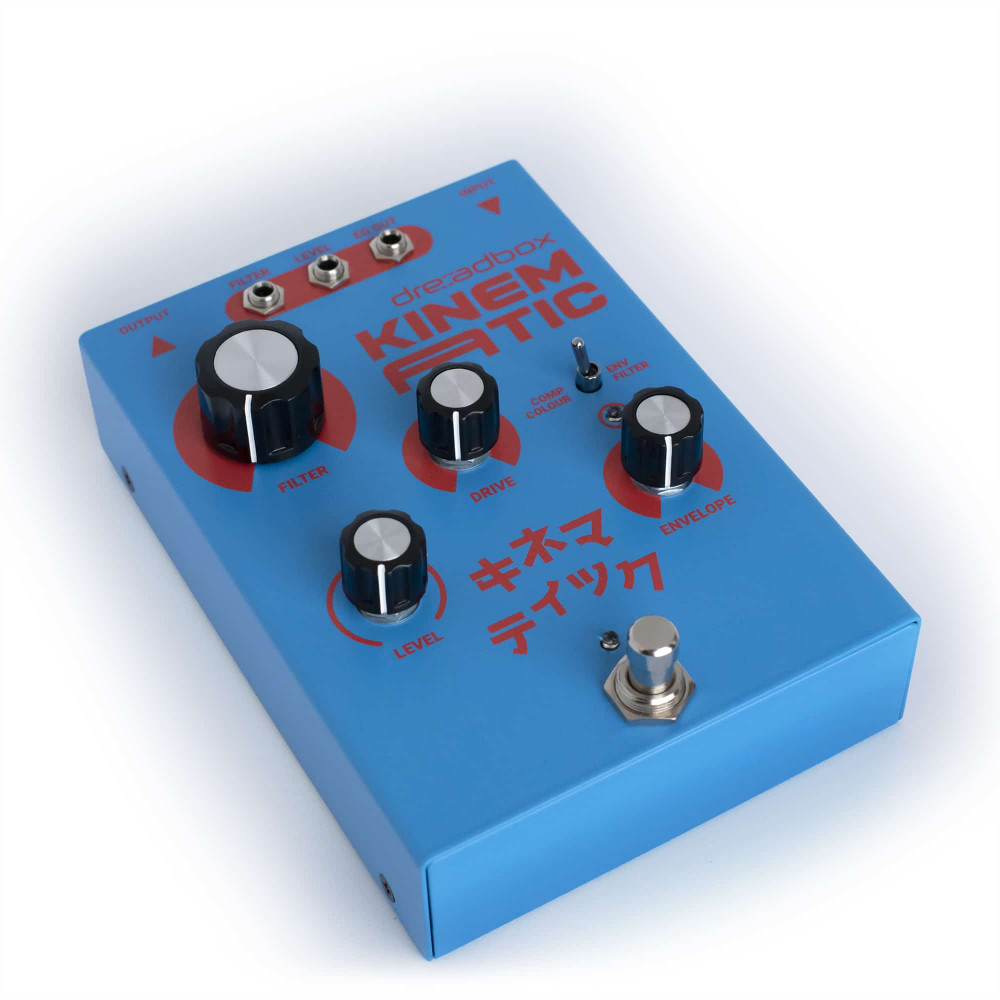

Dreadbox KINEMATIC is a VCA based Compressor and an Envelope Filter effect pedal suitable for fretted instruments and synthesizers, with eurorack compatibility.
Features
- Full Analog VCA based Compressor
- Band Boost Filter
- Extreme Compration Ratio
- Envelope Filter
- Low Pass Filter
- Slow Envelope Curve
- Post Diode Overdrive Circuit
- Level Boost up to +18dB
- True Tone Maker
- 3 patch points for our modular fans
Specifications
- Circuit: Analog
- Bypass: CMOS
- Audio: Mono

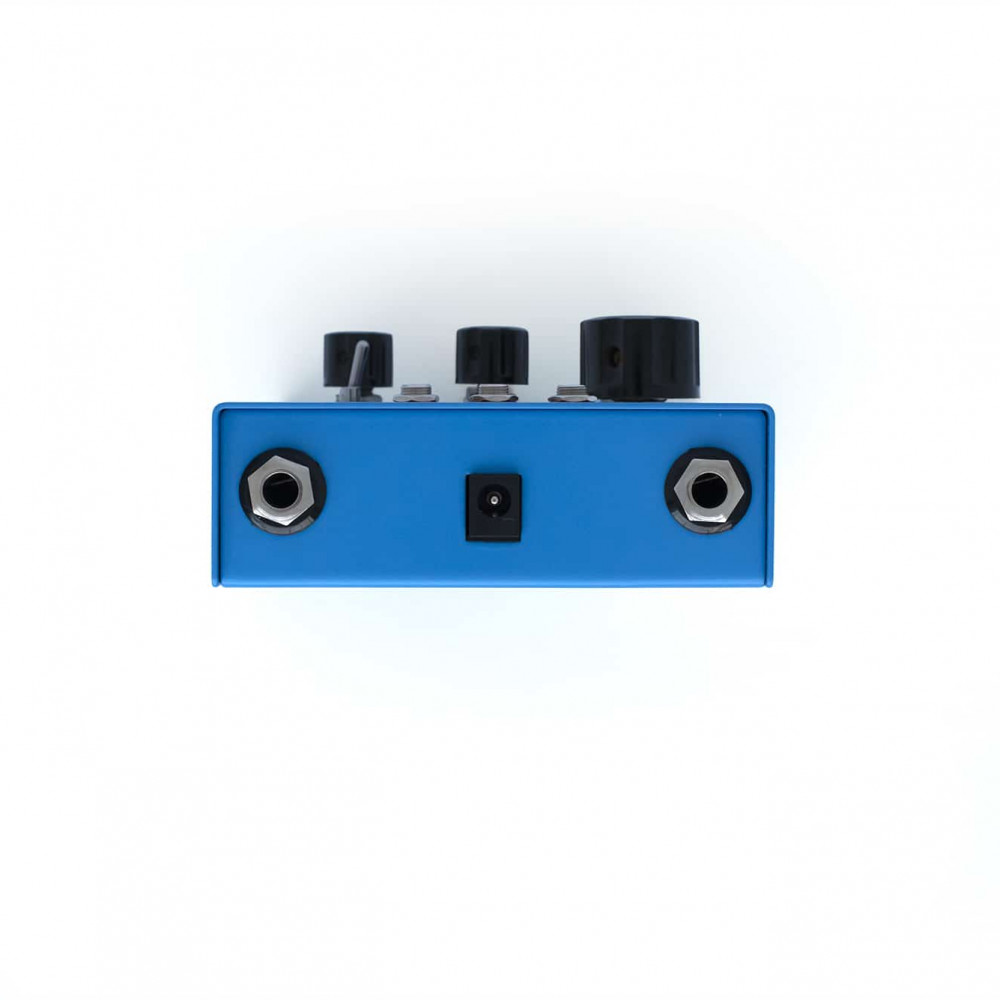

- IN/OUT : TS Unbalanced 6.4mm jack
- Filter / Level / EG Out : 3.5mm mini jack
- Power Supply: 9VDC BOSS style center pin negative 2.1mm (NOT INCLUDED)
- Dimensions (cm): 14 x 10 x 5.6
- Current Draw: 85mA
