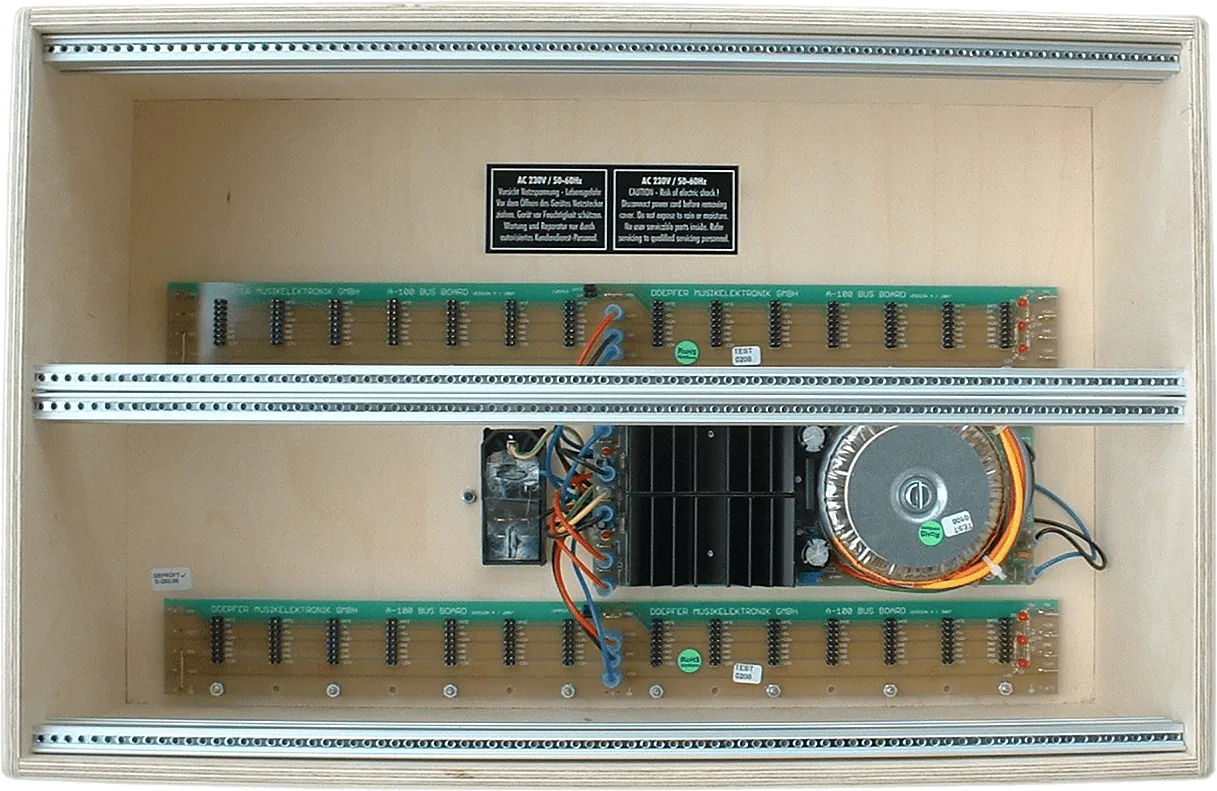

This is an economical version of the A-100 suitcase versions. It includes the A-100 PSU3 and two bus boards.
The case is made of raw wood without laquering. The case can be varnished by the customer in any desired color e.g. by means of a spray can or left as is
From the Doepfer website….
Measures:
outside: approx. 445 x 275 x 160 mm
inside: 2 x 84 HP x 3 U (two bus boards), useable depth for A-100 modules: approx. 80 mm in the power supply area (bottom right),approx. 110 mm in the remaining area (measured from inner side of the front panel to the end of the pc board of the module)
Weight (without modules): about 4 kg
Electrical specifications:
mains voltage: 230V
output voltages/current: +12V/2000mA, -12V/2000mA
