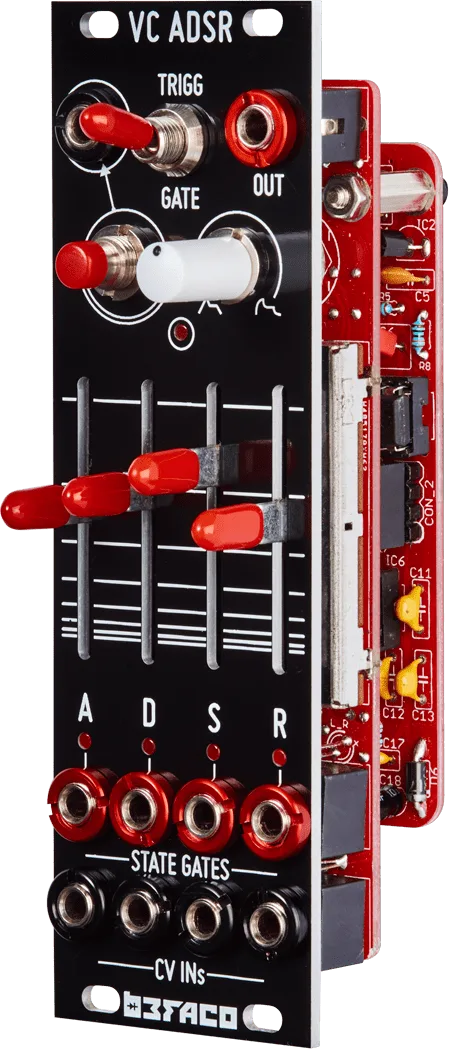

The VC ADSR is a take on the classic ADSR: now smaller, more powerful and user friendly. This compact unit features voltage control for each stage with manual faders to improve usability, feel and aesthetics. A unique feature of the VC ADSR is the gate outputs for each stage of the envelope offering an extra level of control over your patch! Envelope generation can be triggered and controlled with the use of the panel mounted push button or with the trigger/gate input. Control of the response curve between each stage of the envelope (from linear to logarithmic/exponential) is provided by a potentiometer.
Specs:
55 mA 12V
15 mA -12V
0 mA 5V
8hp
30 mm Depth
