Ready to feed the most modern and power-hungry modules.

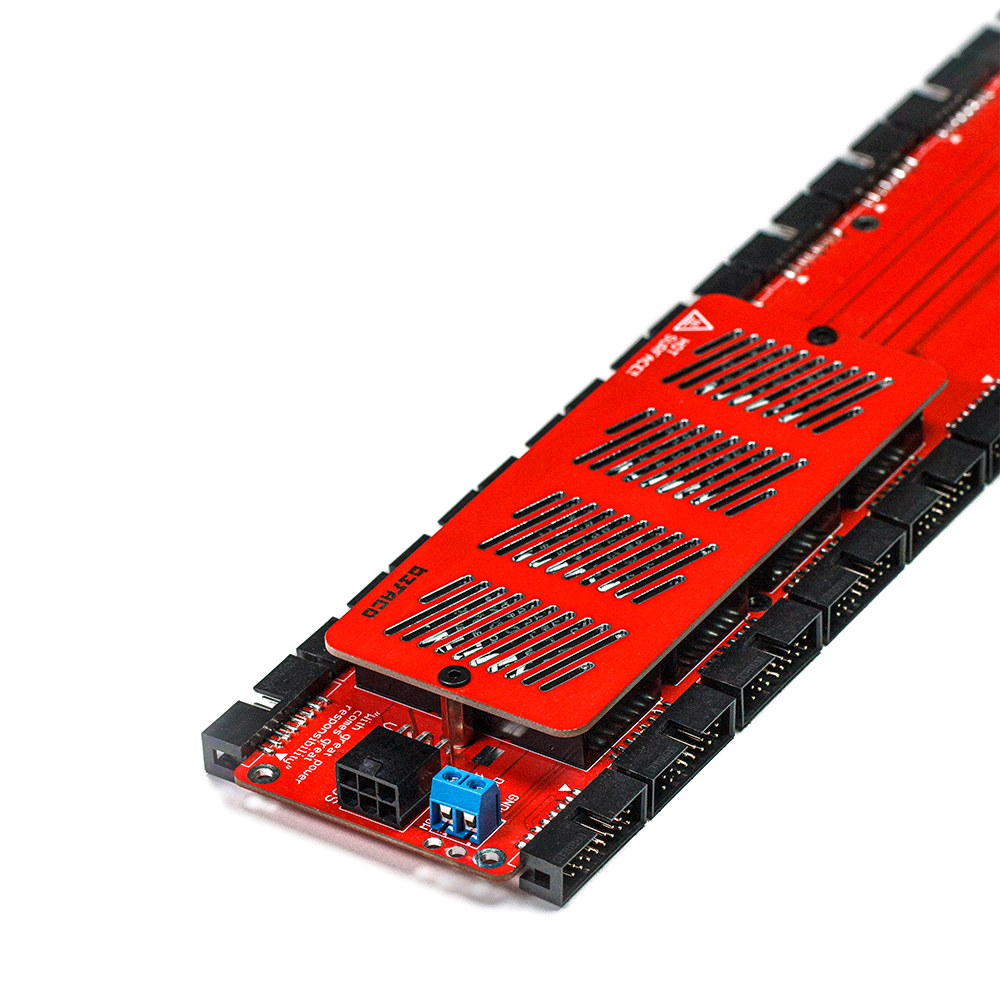

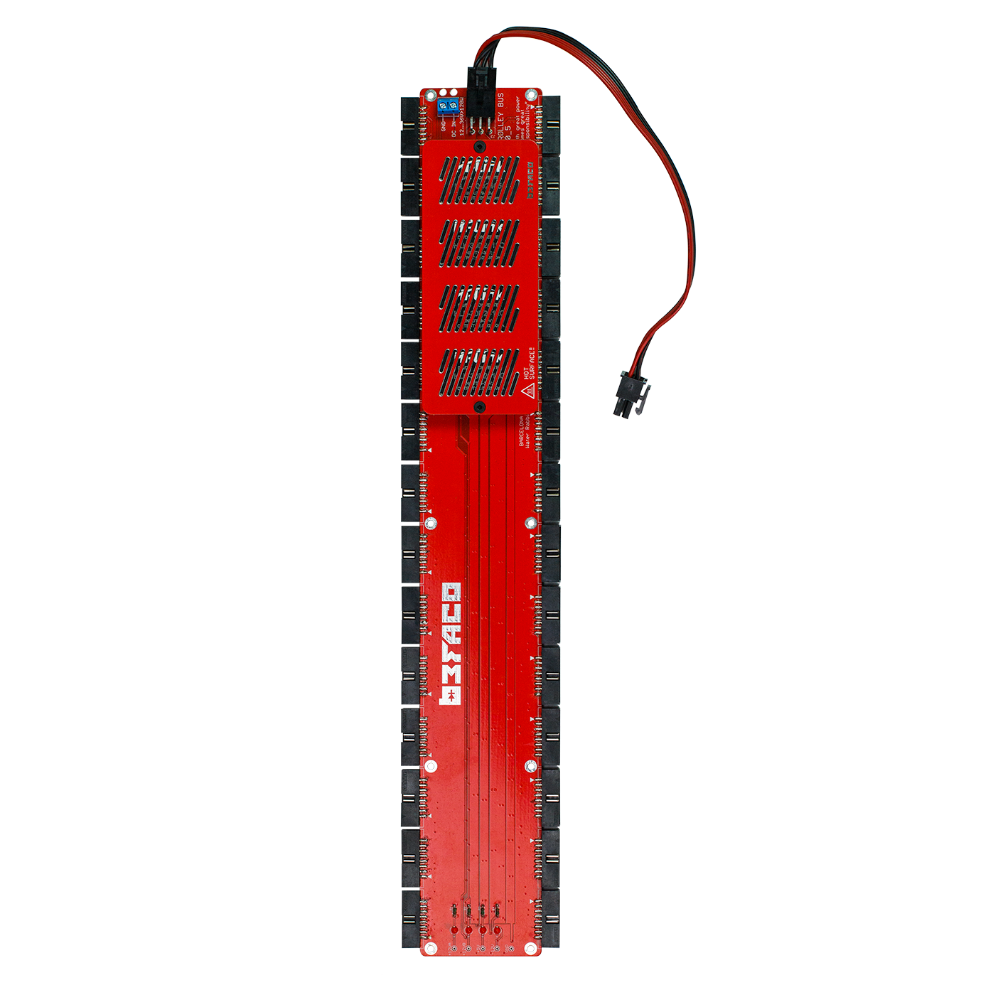

A 5A power solution, 28 slots powered by four high-quality DC-DC converters.

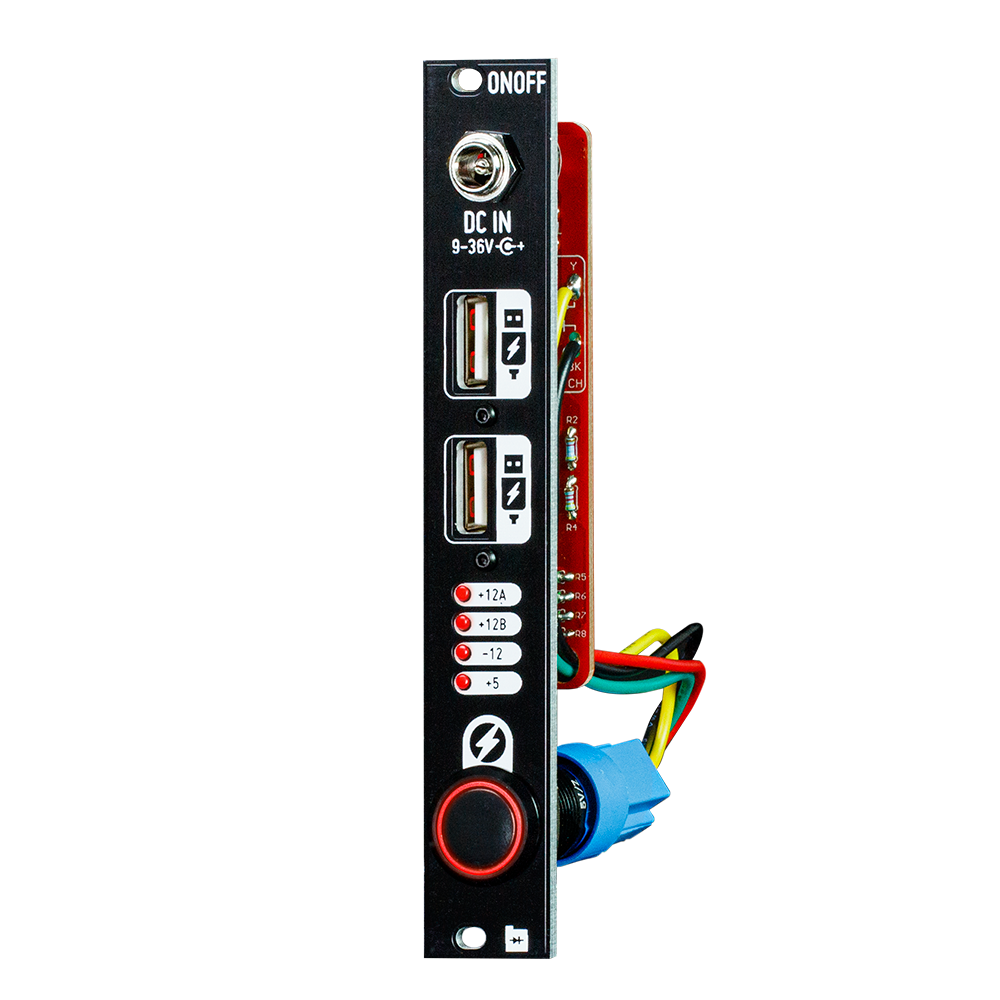

ON/OFF 4HP – 3U module with 2 USB-A charging ports and a Power Button.
Friendly Plug and Play, tools are not required.
Features:
- 25 mm height over regulators grid and 15 mm height on the rest of the bus
- Horizontal connectors to maximize space
- 2,5mm barrel power connector
- On/Off 4HP module
- 2 USB-A charging ports
Specs:
- Power brick: 135W 2.5mm Barrel connector center positive (included)
- Current: +12V: 5A, -12V: 2,5A, 5V: 4A
- Measurements: 423 mm x 80mm
- Designed, kits prepared and completed modules assembled in Barcelona
Manufacturer Product Page HERE
Manufacturer Product Manual HERE
