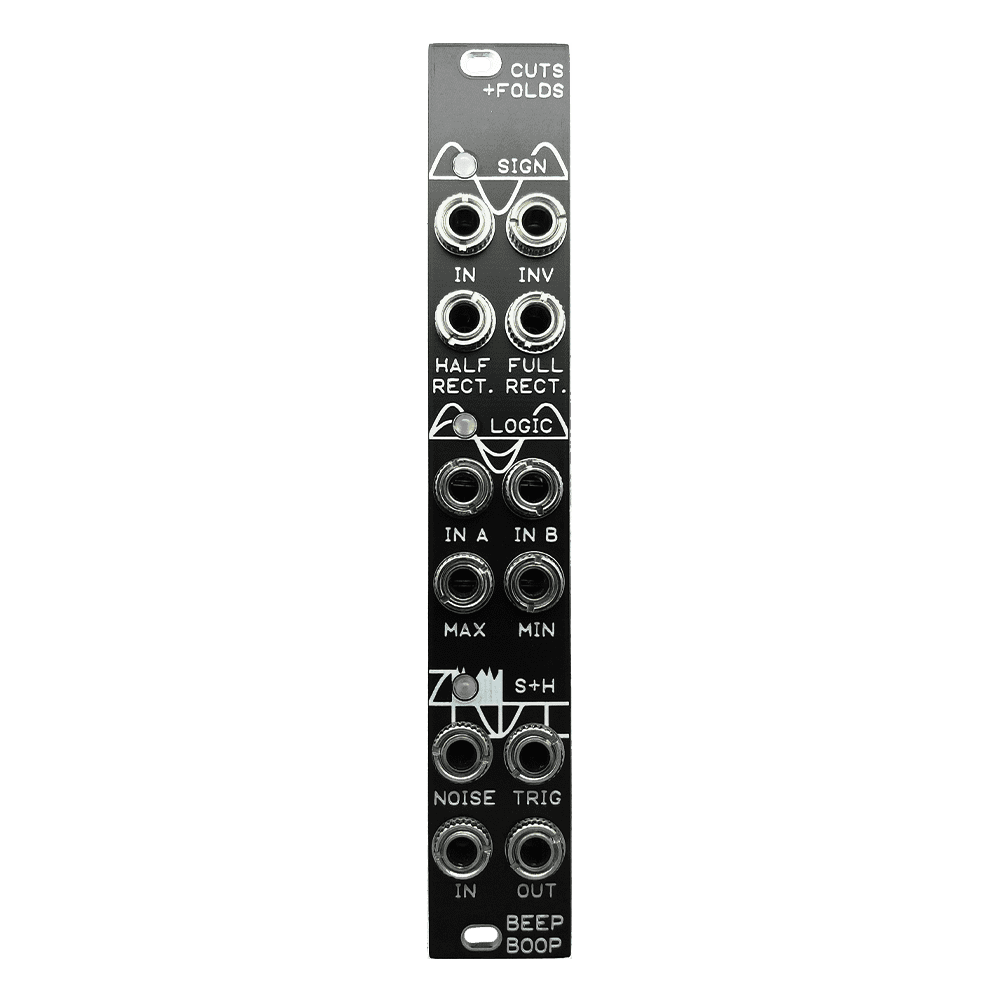

Cuts and Folds is a redesign of the Mutable Instruments module Kinks using 0805 SMD components. The module includes a rectifier section that can invert, half and full wave rectify. The second section is a Min / Max logic section which can mix two signals to give you two new variations. Works great with LFOs! The third section is a sample and hold which produces random modulation from the internally normalised noise source when triggered.
The S/H section is analog so will held voltages will drop over time at a rate of approx 1mV per Sec. Random voltages with a range of +/- 5V are produced using the internal noise source when externally triggered. The noise output can be used independently.
Including power ribbon, mounting screws and 1 year Warranty – hand soldered with love here at 74 Stokes Croft.
Specifications
Width: 4hp
Depth: 33mm
Power: 25 mA +12V, 25 mA -12V
