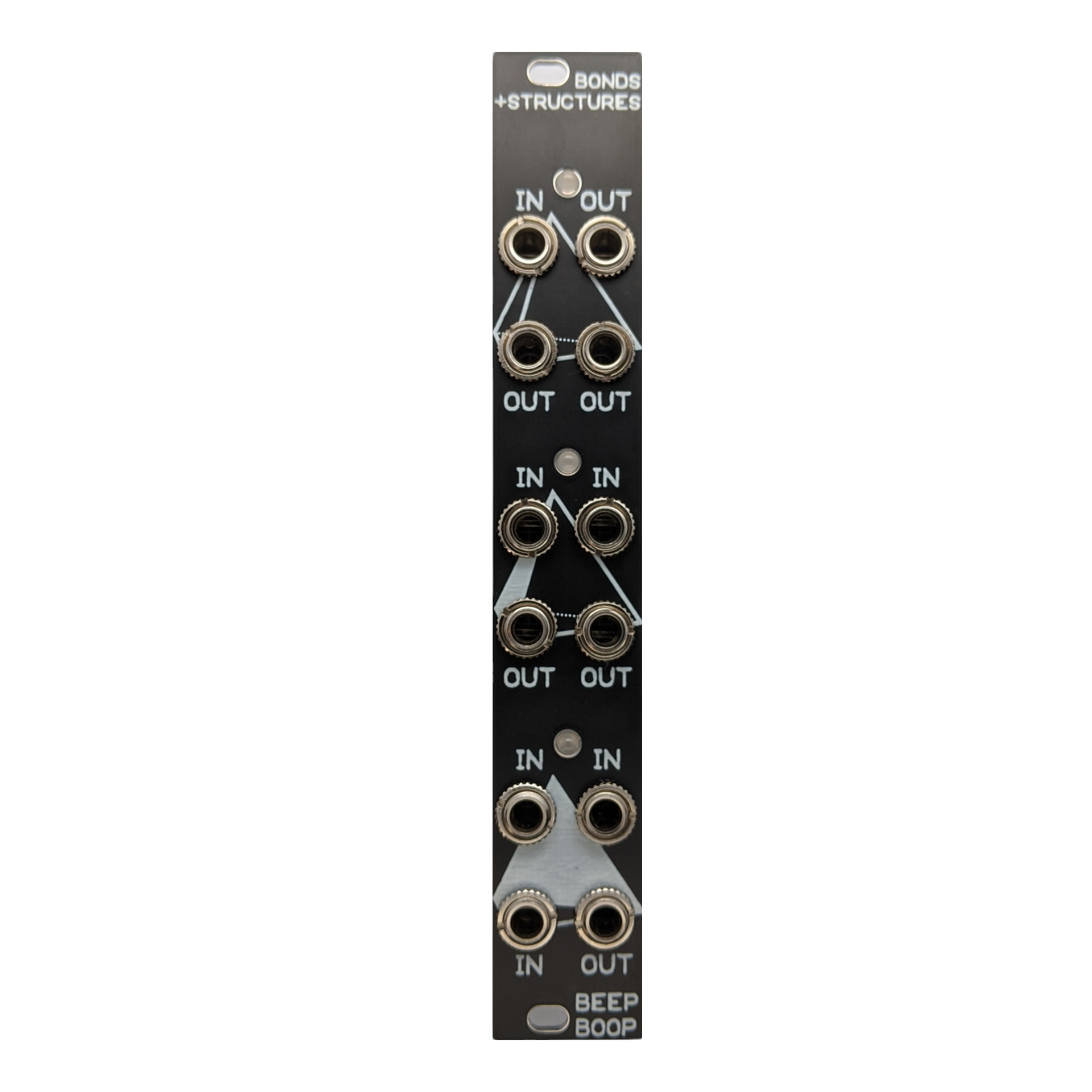

The beepboop Bonds & Structures utility module is a 3:1 buffered mult, 2:2 mixer and a 3:1 mixer all in one.
The compact combination of different circuits into 4hp makes this a very useful utility for all types of system.
All sections are DC coupled for use with both audio and DC signal and feature bipolar LEDs for signal monitoring.
This Bonds & structures is a redesign of the original Mutable instruments Links module built with the same high quality parts.
Lovingly hand built at Beepboop Electronics Workshop in Bristol, UK. Includes power ribbon, mounting screws and 1 year Warranty
Specifications
Width: 4hp
Depth: 35mm
Power: 15 mA +12V, 15 mA -12V
