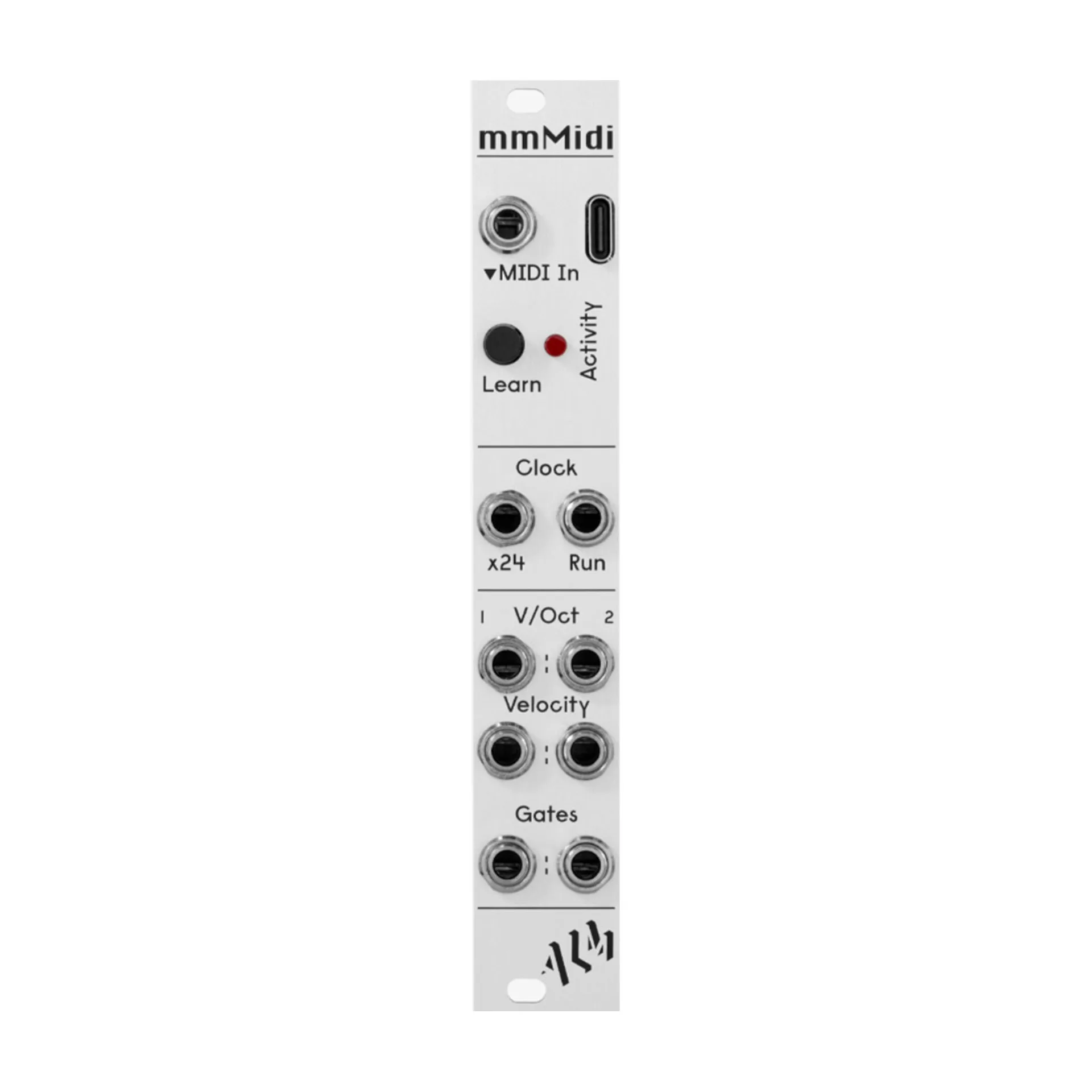

ALM Busy Circuits mmMIDI Eurorack Midi/Cv Converter Module

The mmMidi is a simple & compact MIDI to CV interface for your Eurorack synthesiser. It translates both MIDI clock and 2 Channels of MIDI note, velocity and gate information to corresponding voltage control signals. The mmMidi is quick to set up and requires minimal configuration.

Features

• Dual channel conversion of MIDI note, velocity and gate signals.
• Convert MIDI clock signals out into modular signals to sync Pam etc.
• Setup & configure in under a minute.
• Includes TRS-DIN (Type B) adapter for DIN MIDI cable connection.
• Easy firmware update via SYSEX upload.
• Optional mmT expander maps keys presses to 8 gate/trigger outputs
• Skiff friendly with reverse power protection.

Specifications

Width: 4 hp
Depth: 38 mm
Power: +12V 30ma / -12V 0ma

Manufacturer product page here
