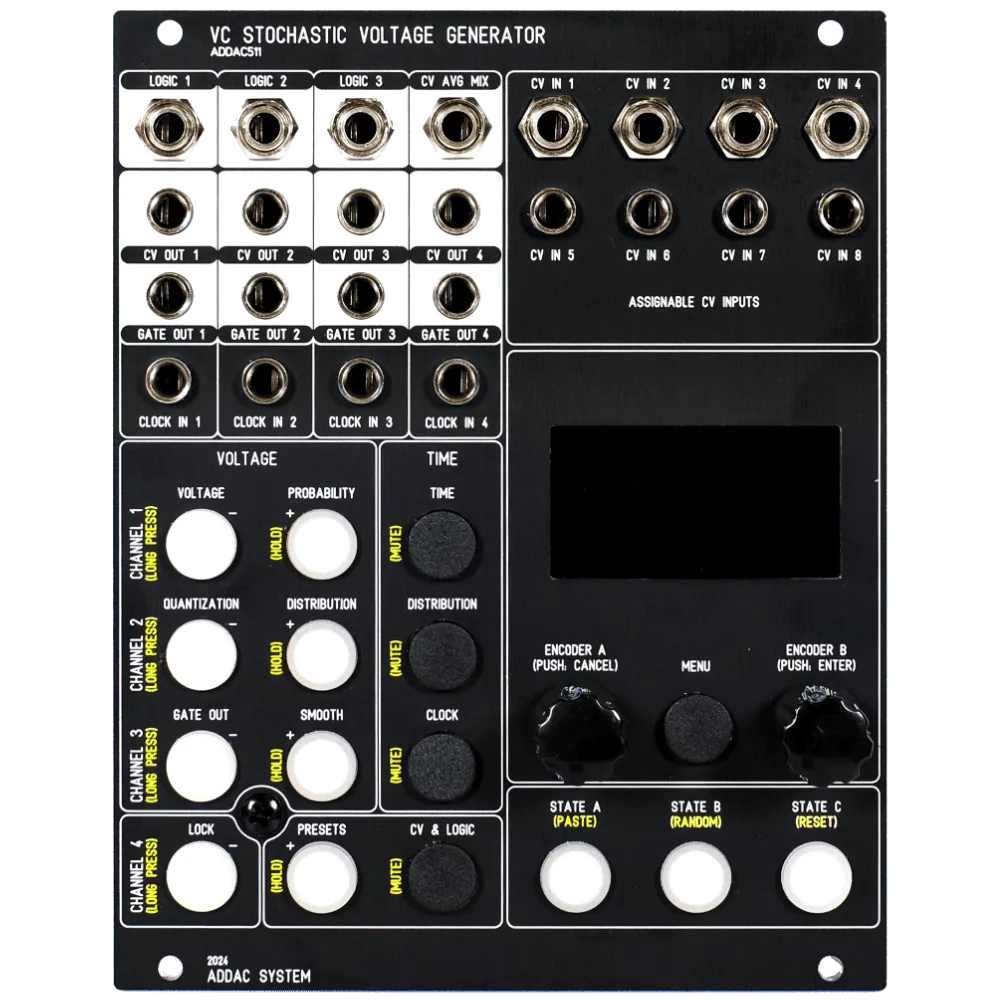

This module greatly expands on the principles of our ADDAC501 Complex Random from 2013.
This is a fully fledged 4 channel voltage generator capable of all things random, with quantisation, probability, distribution, interpolation, time control, clock, states and a 32 step sequencer. The module operation relies on its screen for all parameter editing, each button accesses one single page where parameters can be changed allowing a fast and fluid workflow across all settings.
Long presses on all buttons have a secondary function allowing fast Channel selection plus Mute and Hold functions. The combination of having 2 Encoders with Push buttons allow swift navigation and editing across all pages and their settings.
Features
- 4 independent channels with bipolar CV / gate outputs and clock Input that allow all things random.
- Each channel can be set to generate either continuous voltages, envelopes or as a quantiser.
- Mutes and Holds per channel: 3 States per channel allow very fast settings changes, allowing from smooth to drastic transitions.
- Controls over voltage range, quantisation with custom scales, probability, distribution curves and smoothing, plus time and bpm ranges, time distribution curves and several clock sources.
- A 32 step sequencer per channel that can work completely independent or in sync.
- 8 Assignable CV inputs and 4 Gate inputs can be internally mapped to any setting of any channel.
- 3 configurable Logic outputs allows complex logic events comparing different channel states.
- Average CV output of all 4 CV outputs. Easy VCO tuning available in the Menu.
- Calibration and mapping of all 4 CV outputs is also allowed throughout the Menu.
Specifications
- Width: 20hp
- Depth: 45mm
- Power: +12V 200mA / -12V 100mA
