Most musicians use their feet as an extension of their playing, either pushing piano pedals, sustain pedals, guitar pedals…
We find that feet have been underrated while using modulars, in the past we released a series of modules using sustain and expression pedals for triggering or controlling signals to help breaking the ice. While these are small and still usefull for simple uses we wanted to create something more specific this time.
Our new solution features 5 footswitches and 5 inputs for external expression pedals with independent controls for each.

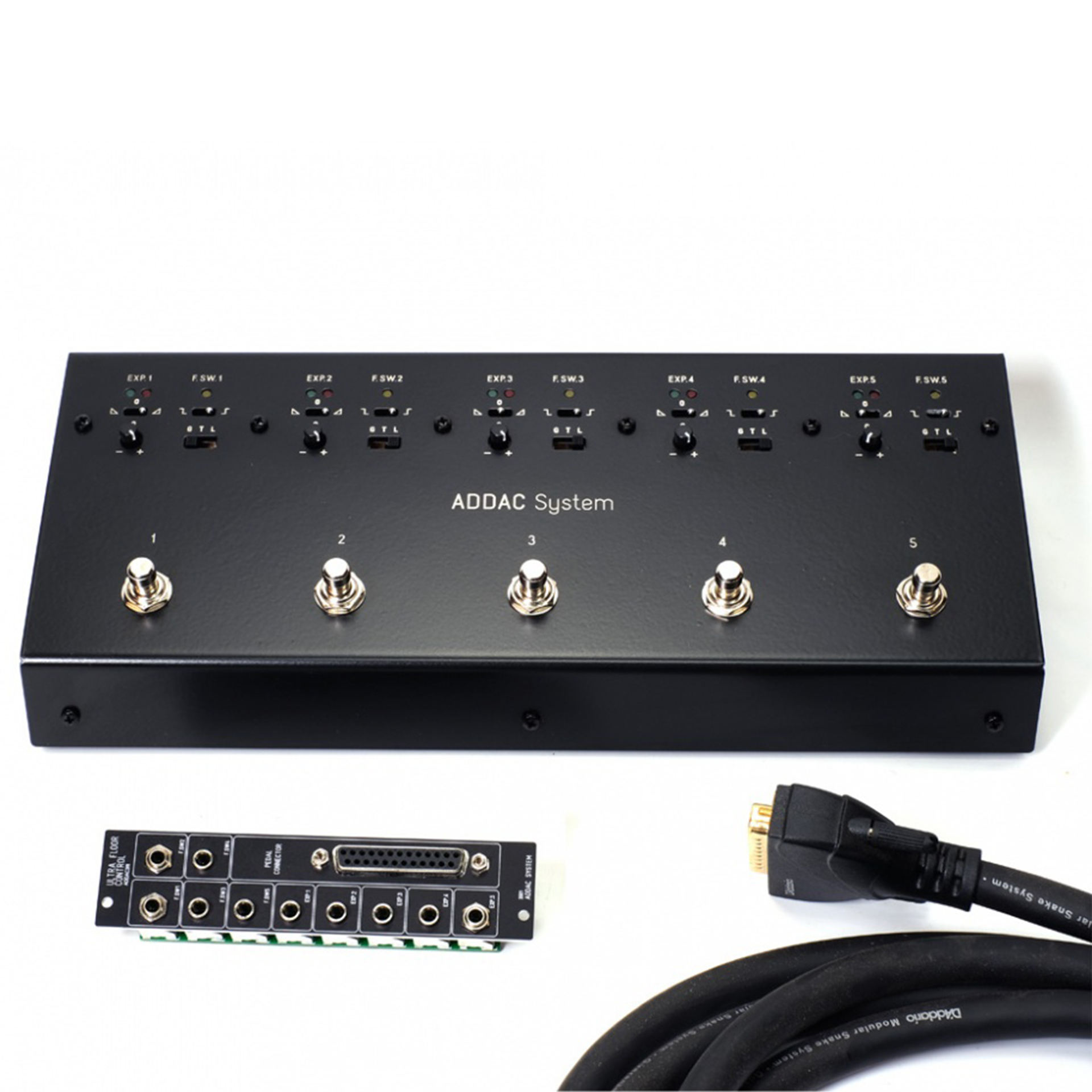

We wanted to save HP rack space and so created an external floor pedal with all the footswitches and controls keeping the module HP to the minimum possible featuring only the 10 outputs and the connector to the external floor pedal.
Features:

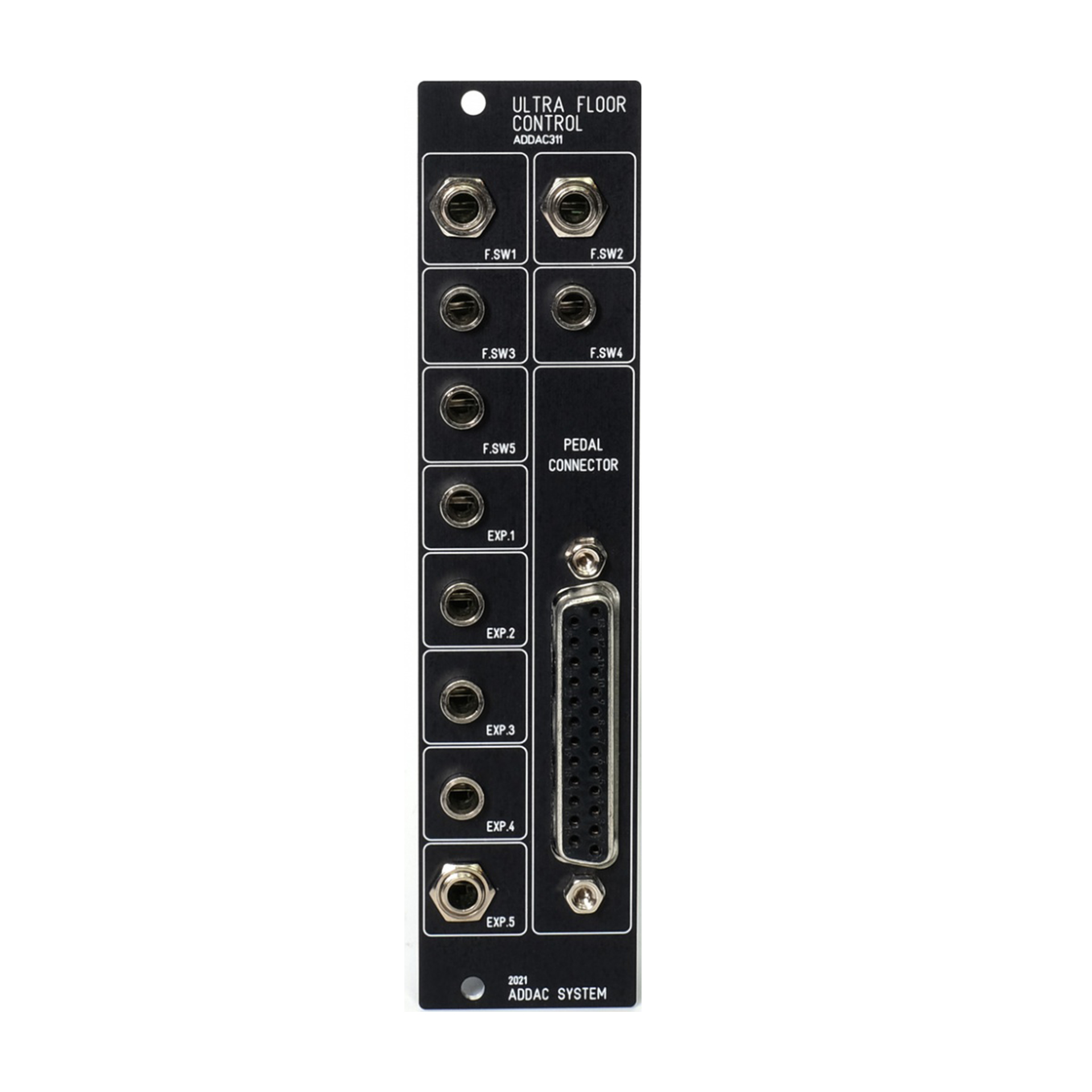

- 8Hp module

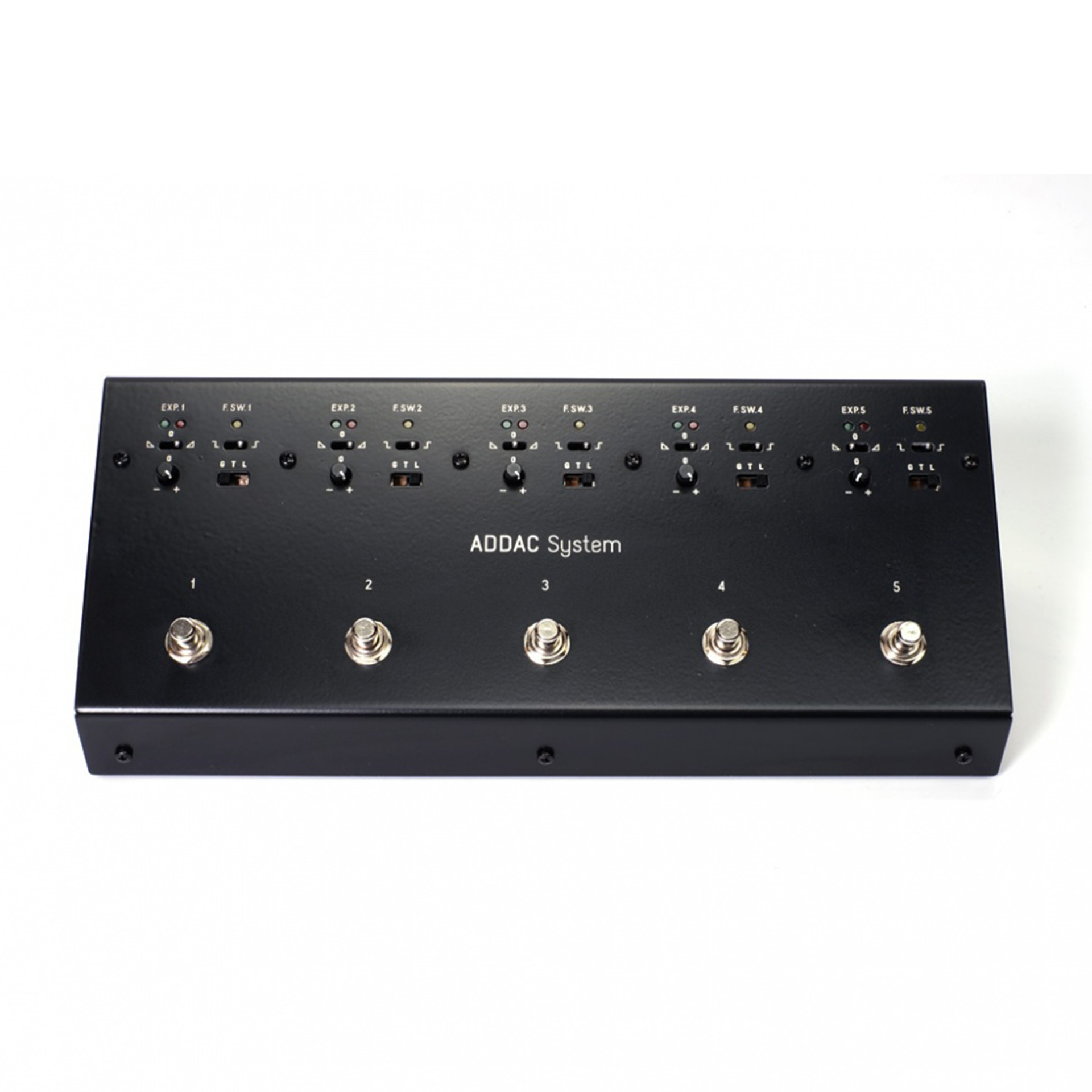

- External floor pedal

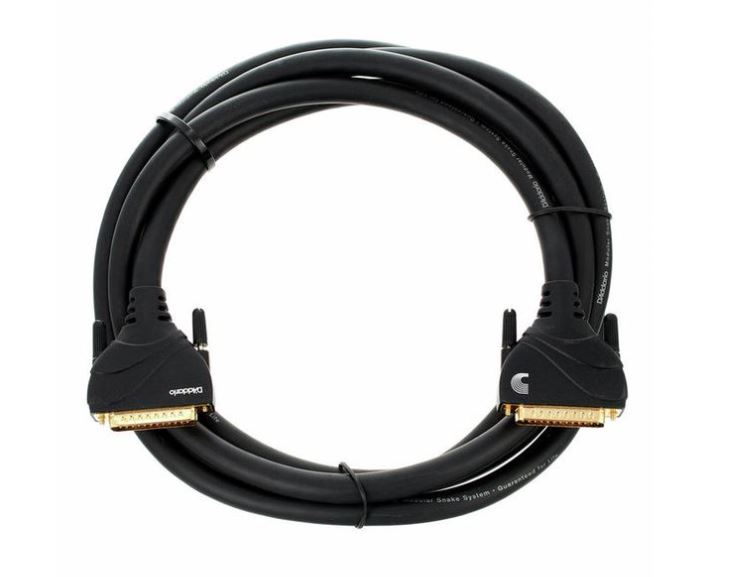

- 3 meters DB25 connector cable (included in this bundle)
- 5 Footswitches with 0 +5v Gate outputs and state led monitor
- 5 Expression pedals inputs with -5v +5v CV outputs and 2 state led monitors
Technical Specifications
-
Width: 8hp
Depth: 25mm
Power:100 mA +12V, 50 mA -12V
There are many expression pedals in the market and although the most common one is the TRS pedal there are 2 other standards: RTS and TS.
All five ADDAC311 inputs expect TRS pedals, if you’re looking into buying one choose a TRS pedal.
If you already have other pedals channel 4 features jumpers that can be switched in order to be used with a RTS pedal.
Channel 5 features a jumper that can be switched in order to be used with a TS pedal.
