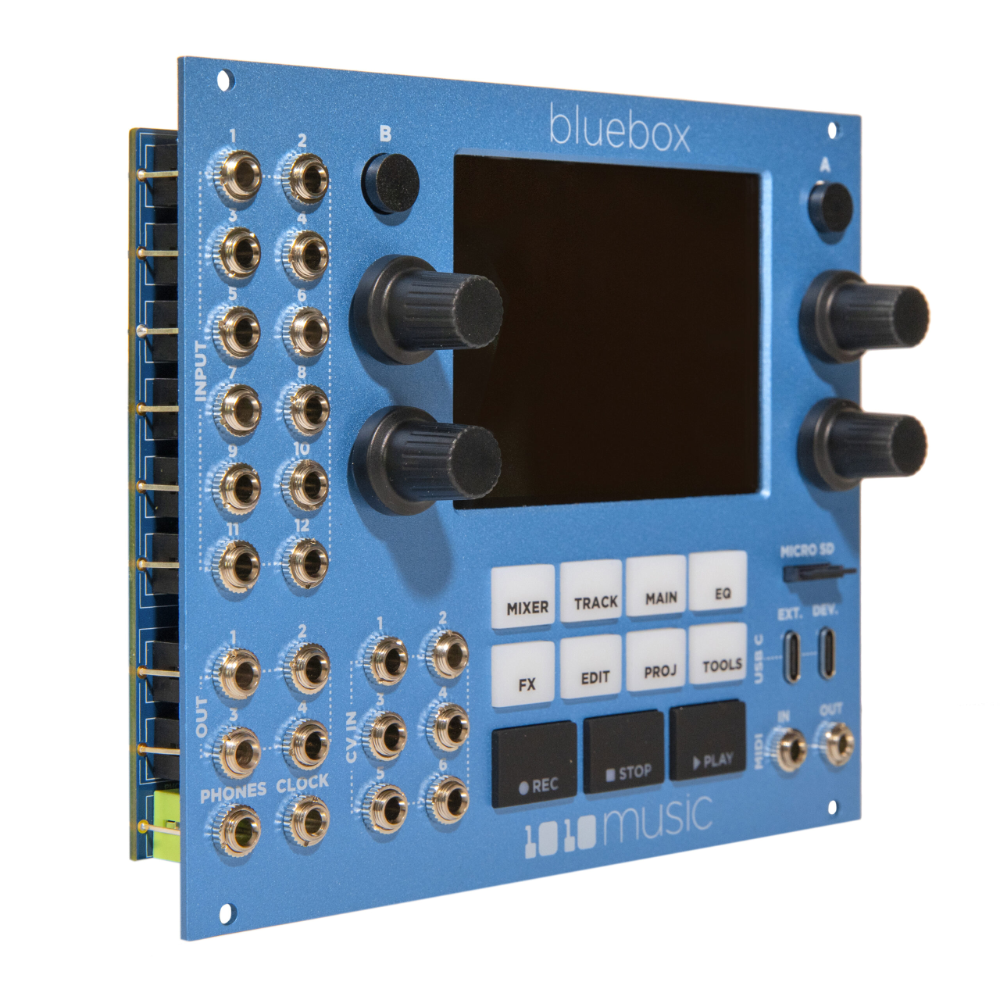

The bluebox Eurorack edition is the new Eurorack mixer with effects and multichannel recording/playback based on the award-winning bluebox desktop mixer. With the Eurorack edition’s USB-C EXT port, you can send 2 channels of audio to and from your computer.
Plus, you can control up to 6 mix settings with the 6 CV inputs. Whether recording your Eurorack jams, using it to play stems as backing tracks, or a combination of both – bluebox Eurorack edition will rock your rack!
- Mix 12 mono/6 stereo tracks of live or prerecorded sound.
- Independently route each track to any combination of outputs:
- 4 mono / 2 stereo outputs
- Stereo headphone output
- 6 CV inputs for modulation and control – clock output
- TRS MIDI input and output
- USB-C for external MIDI controllers and MIDI sync/clock
- USB-C for 2 channel audio
- microSD to record/play hours of multi-track/stereo music as 48k, 24 bit WAVs and for firmware updates
- Ability to playback pre-recorded tracks while recording new ones
- Master control of the same mixer parameter across multiple tracks for faster mixes
- Touchscreen gestures and knobs to quickly and easily tweak parameters
- Four band EQ per track with Cut/Shelf/Parametric settings for each band
- Great Reverb and Delay effects with independent sends for each track
- A built-in global compressor to maximize loudness and glue your mix together
- Save and recall Project settings including all parameters for tracks, outputs, EQ and effects
Tech Specs:
- 12 mono tracks, 6 stereo tracks or something in between
- Connect to TRS or USB C MIDI for beat syncing effects
- Lots of headroom with support for Eurorack levels up to +/-5V inputs and outputs
- 3 effects: reverb, delay and compressor
- Records and plays back 48k, 24-bit audio WAV files
- 4 band EQ per track
- Durable aluminum faceplate
- Stream 2 channels of audio in and out over USB C
- 12 mono 3.5 mm TS inputs
- 2 independently controlled 3.5 mm TS output pairs that can be used as 4 mono outputs
- 1 stereo 3.5 mm headphone output
- 6 CV Inputs
- 1 USB C MIDI Device port
- 1 TRS MIDI Input
- 1 TRS MIDI Output
- 1 USB C Ext jack for streaming audio
- 3.5” touch screen, 4 knobs, 8 navigation buttons and 3 transport buttons
