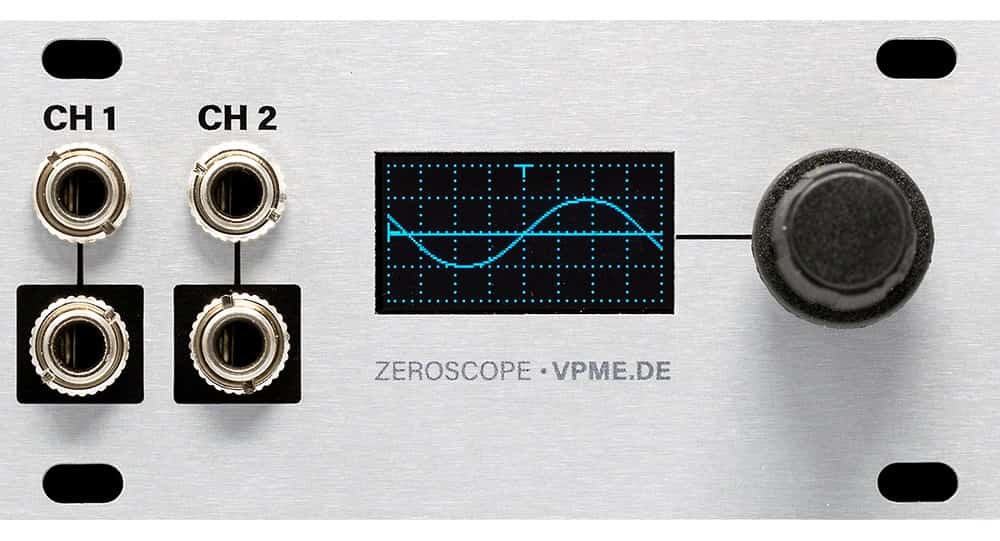

The Zeroscope 1U is an adaptation of the excellent 3U Zeroscope by VPME.DE.
- Scope — Standard graphical display, with time displayed on the X-axis and voltage displayed on the Y-axis.
- X-Y — Alternate graphical display with CH 1 driving the X-axis and CH 2 driving the Y-axis.
- Tune — Alphanumerical tuning display, which you can configure to show either Hz values or note names.
Width: 16 hp
Depth: 26 mm
Power: 0.5V – 10V per division
