Expert Sleepers ESX-8MD Eurorack MIDI/DIN Expander Module (ES5, ES40)

£139.00 inc. UK VAT

£115.83 ex. VAT

Available on back-order

(Bear in mind prices on the UK site are shown including UK VAT. After entering your shipping address at checkout prices will update to show the correct taxes due to us based on your location. If purchasing internationally, VAT, handling fees, and import duties will potentially be due on delivery)





Product Info

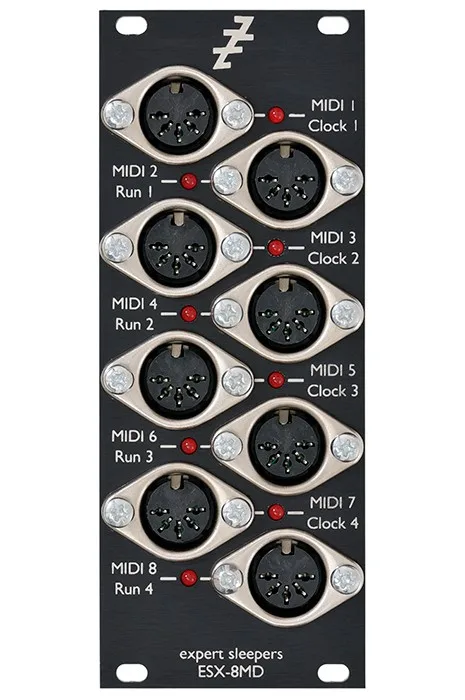

Expert Sleepers ESX-8MD MK2 is an expansion module for the ES-4, ES-40 or ES-5, adding eight MIDI/DINsync outputs from one expansion header.

ESX-8MD is shipping in a revised “mk2” form. Functionally the mk2 is equivalent to the mk1. However, MIDI output is now guaranteed at all samples rates, for all receiving devices. (The mk1 was incompatible with some devices when running at 44.1kHz.)

The ES-4/5 Controller software (part of Expert Sleepers Silent Way) allows the ESX-8MD outputs to be used for MIDI output* (note – not just MIDI clock output, but as an actual MIDI port, capable of sending any MIDI messages). Since these outputs are driven from an audio connection, they have sample-accurate timing, which no USB MIDI interface can claim.

The Silent Way Sync plug-in would typically be used to send DINsync to the ESX-8MD, though any software capable of addressing the ES-4/5’s expansion headers, via Silent Way or the Max/MSP external, can send clock pulses to it.
