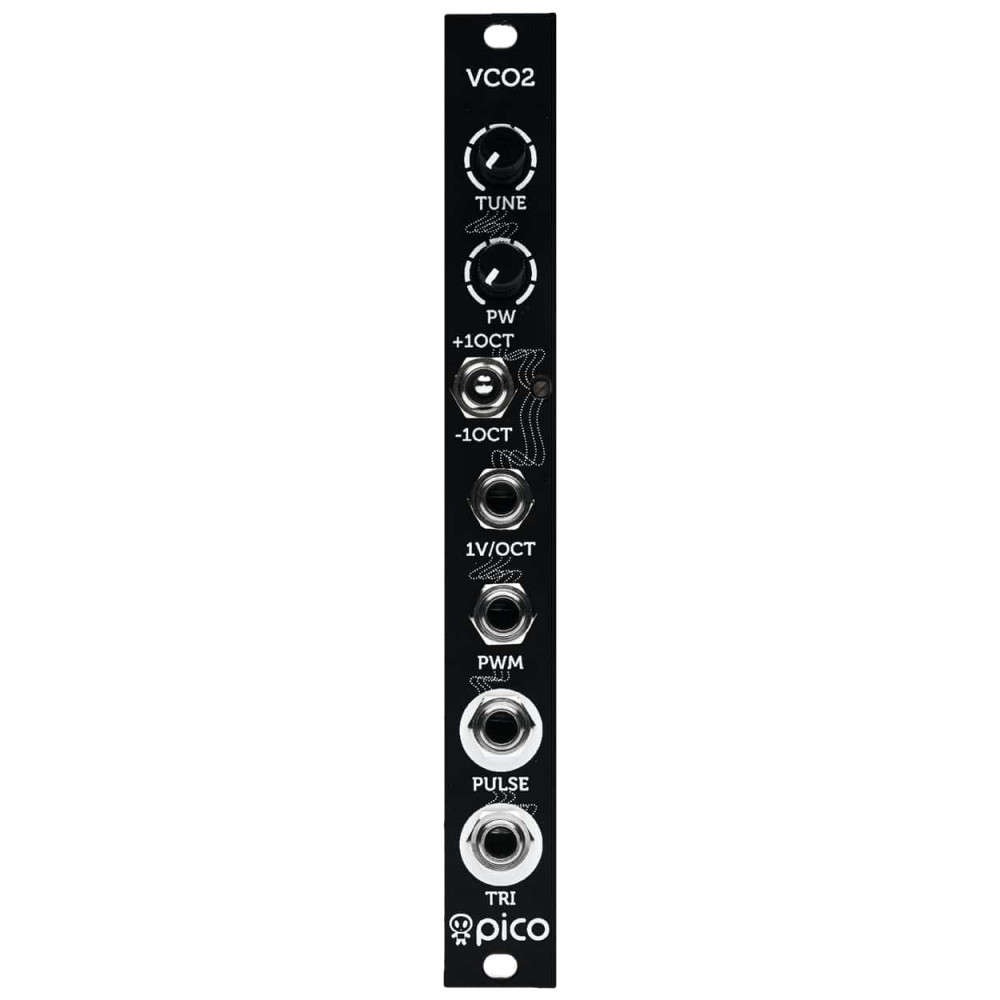

Erica Synths Pico VCO2 Eurorack Oscillator Module

Erica Synths Pico VCO2 – powerful, full analogue VCO with great tracking over 8 octaves just in 3HP! Combine two of those, add some PWM and have a sound of real analogue beast!

Features

• Manual TUNE and PWM controls
• +-1 octave switch
• 1V/oct input with good tracking across 8 octaves
• PWM CV input
• Pulse and triangle waveform outputs
• Input protection against overvoltage
• Protection against reverse PSU connection
• Output signal amplitude -5V to +5
• PWM CV input range -5V to +5V

Specification
Width: 3hp
Depth: 35mm
Power: +12v 21mA, -12v 19mA
