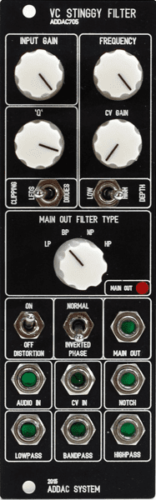

Multi-mode filter inspired by the original WASP Filter.
Features:
- Four diferent filter types: Low-Pass, Band-Pass, Notch-Pass and High-Pass with independent audio outputs.
- Cutoff features a voltage-controlled cv input with a dedicated cv attenuator pot.
- Two switches selects different Resonance clipping paths: no clipping / diodes and Resonance depth: high / low.
- The Main output filter type can be selected through a 4 position switch.
- The Main output circuit features a Distortion/Fuzz circuit that adds extra harmonics to the filtered audio.
- Phase switch selects the Main output phase polarity.
- One Led monitors the audio signal of the main output.
Specs:
60 mA 12V
30 mA -12V
0 mA 5V
8hp
